YF-DH-25 Heavy Duty Drawn Arc Stud Welding Gun (Φ3-32mm)
The YF-DH-25 is a heavy-duty manual gun designed for Φ3-32mm studs. It features a robust 2.6kg build and dual support rods, ensuring maximum stability and precision for large-scale steel and industrial construction.
Description / Features
- Welding Range: Φ3-32mm studs and shear connectors.
- Positioning: Linear bearing spindle for high precision.
- Ergonomics: 2.6kg lightweight high-temp plastic body.
- Durability: 2m high-toughness cable for flexible site operation.
- Stability: Dual support rods for high repeatability.
- Application: Steel structures, bridge, and shipbuilding.
Φ3 - 32mm
Welding Range
2.6kg
Gun Weight
2 Pieces
Standard Support Rods
Technical information
| Parameter | Specification |
|---|---|
| Type | Drawn Arc Stud Welding Gun |
| Welding Range | Φ3mm-Φ32mm |
| Welding Mode | Electric Arc Welding |
| Support System | 2 Standard Support Rods |
| Net Weight | 2.6 kg (Excluding cables) |
| Min. Stud Length | 20mm |
| Cable Configuration | 2m High-Toughness Cable (Extendable) |
| Body Material | High-Temperature Insulation Engineering Plastics |
Applicable Stud Welders
RSN7-2500
Φ3mm-Φ28mm
RSN7-2500S
Φ3mm-Φ25mm
RSM-2500
Φ3mm-Φ30mm

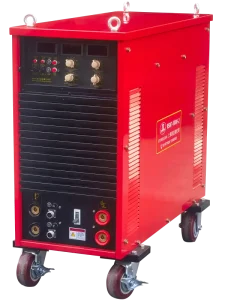

RSN7-5000-2
Φ3mm-Φ38mm
