Choosing between short cycle vs drawn arc stud welding is a critical decision that directly affects weld strength, production efficiency, and long-term costs.
If you select the wrong process, you may encounter serious issues such as burn-through on thin sheet metal or insufficient weld strength in structural applications. These problems can lead to costly rework, production delays, and even safety risks.
This complete guide will help you understand the difference between short cycle and drawn arc stud welding, and determine which process is best for your project.
What Is the Difference Between Short Cycle and Drawn Arc Stud Welding?
The main difference lies in arc time, heat input, and penetration depth.
- Short cycle stud welding uses a very short arc (10–100 ms) with high current
- Drawn arc stud welding uses a longer arc (0.5–3 seconds) for deep fusion
Key takeaway:
Short cycle is designed for speed and thin materials, while drawn arc is designed for strength and thick materials.
Key Differences: Short Cycle vs Drawn Arc Stud Welding
| Factor | Short Cycle | Drawn Arc |
|---|---|---|
| Welding Time | 10–100 ms | 0.5–3 s |
| Material Thickness | 0.8–8 mm | 6–50 mm |
| Heat Input | Low | High |
| Penetration | Shallow | Deep |
| Weld Strength | Medium–High | Very High |
| Ferrules | Not Required | Required |
| Production Speed | Very High | Moderate |
This table summarizes the short cycle vs arc welding difference clearly for quick decision-making.
When to Use Short Cycle Stud Welding
Short cycle is the best choice when speed, efficiency, and surface quality are priorities.
Typical Applications:
- Automotive manufacturing
- Sheet metal fabrication
- Electrical cabinets
- Appliance production
Why Choose Short Cycle:
- Prevents burn-through on thin materials
- Minimal heat-affected zone
- No ferrules required
- High production efficiency
Best for: stud welding for thin sheet metal and high-volume production.
When to Use Drawn Arc Stud Welding
Drawn arc is required for heavy-duty and structural applications.
Typical Applications:
- Structural steel fabrication
- Bridges and infrastructure
- Shipbuilding
- Heavy machinery
Why Choose Drawn Arc:
- Deep weld penetration
- Maximum strength
- Suitable for large diameter studs
Best for: stud welding for structural steel and load-bearing applications.
Recommended Equipment for Drawn Arc Stud Welding
For structural and heavy-duty applications, selecting a reliable drawn arc stud welding machine is essential to ensure weld strength and long-term performance.
The RSN7-2500 is engineered to handle a wide stud diameter range from 3 mm to 28 mm, making it suitable for both medium and heavy-duty structural applications.
With a maximum output of 2500 A and adjustable welding time up to 3 seconds, this machine ensures deep weld penetration and strong metallurgical bonding on thick steel plates.
Built with a stable high-current output system, this equipment ensures deep penetration and reliable fusion, making it ideal for industries such as steel construction, bridge engineering, and shipbuilding.
Key advantages include:
- High power output for large diameter studs
- Stable arc control for consistent weld quality
- Durable industrial design for continuous operation
- Suitable for thick base materials and structural projects
For projects requiring maximum weld strength and long-term reliability, the RSN7-2500 provides a proven and efficient solution.

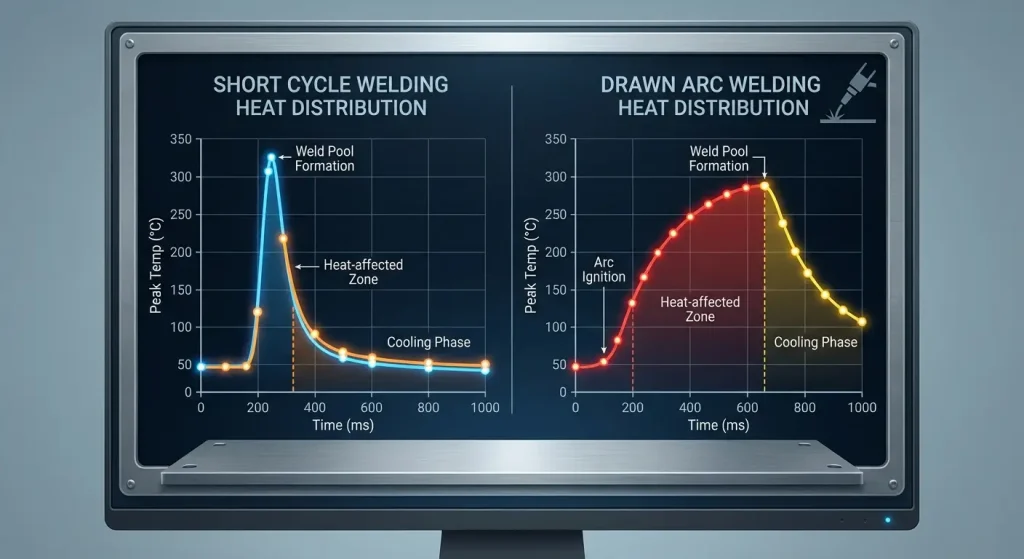

Heat Input and Metallurgical Differences
Heat input directly affects weld quality and material behavior.
Short Cycle:
- Low heat input
- Small heat-affected zone (HAZ)
- No backside damage
Drawn Arc:
- High heat input
- Large HAZ
- Strong metallurgical bond
Decision tip:
If your priority is avoiding deformation, choose short cycle.
Material Thickness and Stud Size Selection
| Material Thickness | Recommended Process |
|---|---|
| < 2 mm | Short Cycle |
| 3–5 mm | Both |
| > 6 mm | Drawn Arc |
Engineering rule:
Material thickness determines the welding process more than any other factor.
Strength Comparison: Which Process Is Stronger?
Drawn arc provides higher structural strength.
- Short cycle → light to medium load
- Drawn arc → heavy structural load
In structural projects, drawn arc weld strength often exceeds the stud itself.
Production Speed and Efficiency Comparison
| Metric | Short Cycle | Drawn Arc |
|---|---|---|
| Cycle Time | <0.1 s | 0.5–1.5 s |
| Output | 20+ studs/min | 4–8 studs/min |
| Cleanup | None | Required |
Conclusion:
Short cycle is the best stud welding process for high-speed production.
Cost Comparison: Which Is More Cost-Effective?
Short cycle:
- Lower consumables
- Higher efficiency
- Lower labor cost
Drawn arc:
- Higher equipment cost
- Requires ferrules
Key takeaway:
Short cycle is more cost-effective for mass production.
Common Mistakes When Choosing a Stud Welding Process
Avoid these common errors:
- Using drawn arc on thin sheet → burn-through
- Using short cycle for structural steel → weak weld
- Ignoring production efficiency → higher cost
How to Choose the Right Stud Welding Process
Choose Short Cycle If:
- Thin material (<8 mm)
- High-speed production
- Surface finish is critical
Choose Drawn Arc If:
- Structural strength required
- Thick materials (>6 mm)
- Heavy-duty applications
Final decision rule:
Match the process to material thickness, load requirement, and production volume.
FAQ: Short Cycle vs Drawn Arc Stud Welding
When should I use short cycle stud welding?
Use it for thin sheet metal and high-speed production.
When should I use drawn arc stud welding?
Use it for thick materials and structural applications.
Which process is more efficient?
Short cycle is faster and more efficient.
Which process is stronger?
Drawn arc provides higher strength.
Final Recommendation
There is no single best method—only the most suitable one.
If you are unsure, consult a professional supplier to select the right solution based on your application.
Contact us for expert stud welding solutions and OEM services.
