Aluminum Flux Balls for Reliable Stud Welding
High-quality Aluminum Flux Balls designed for secure flux fixing at the base of shear studs and weld studs. Manufactured for consistent size, composition, and welding performance, they help provide stable flux positioning and reliable stud welding results across demanding industrial applications.
Home > Stud Welding Consumables > Aluminum Flux Balls
Product Overview

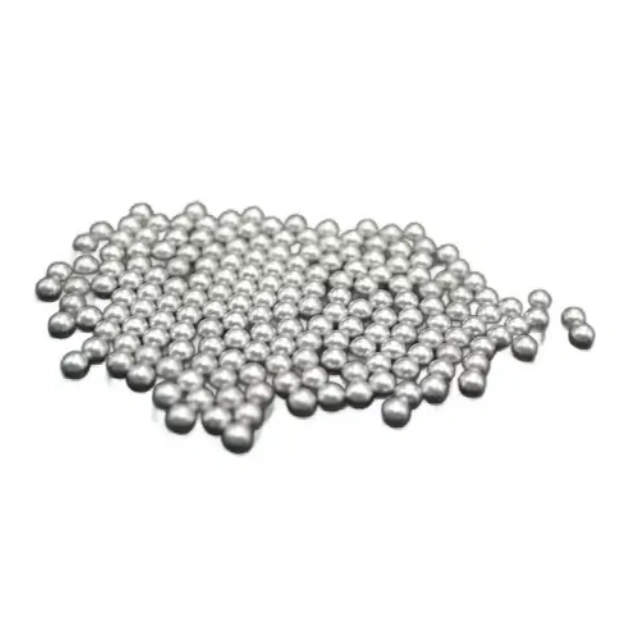

What Are Aluminum Flux Balls?
An Aluminum Flux Ball is a small aluminum-based flux element fixed at the end of a weld stud before the welding process. During drawn-arc welding, it melts with the stud end and helps support arc stability, deoxidation, and consistent weld formation.
Aluminum Flux Balls are available in different sizes and compositions to match specific stud dimensions and welding requirements. Consistent size and material quality are important for reliable positioning and repeatable welding performance.
ZOC Machinery manufactures Aluminum Flux Balls in-house, providing fabricators, steel construction companies, and industrial distributors with a direct factory source for consistent quality, bulk supply, and customized requirements.
99.5%+
Aluminum Purity
High-purity aluminum for fast, complete deoxidation of the weld pool.
Ø2.5-4.0mm
Standard Diameters
Sized to match common shear stud and weld stud tip cavities.
Sourcing Aluminum Flux Balls for a shear stud or weld stud program? Talk to our engineering team.
Why It Matters
Why Are Aluminum Flux Balls Important?
On shear stud and weld stud connections, the flux ball is the difference between a weld that passes a bend test and one that doesn’t. Here is what a properly made Aluminum Flux Ball delivers on site.
Removes Weld-Pool Oxides
High-purity aluminum reacts with oxygen in the molten pool, pulling oxides to the surface so they don't get trapped inside the fusion zone.
Stabilizes the Arc
A consistent flux ball diameter keeps the arc column steady through the weld cycle, reducing arc blow and undercut on large-diameter studs.
Delivers Full-Strength Fusion
Cleaner, more stable welds routinely meet the 360° full-collar requirement that structural shear connector inspections check for.
Cuts Rework & Rejects
Fewer porosity and fusion defects mean fewer bend-test failures, less re-welding, and faster inspection sign-off on site.
See how flux-ball quality affects your bend-test pass rate.
Technical Specifications
Specs You Can Hand Straight to Your Engineer
Every dimension and mechanical property below is verified against AWS D1.1 / ISO 13918 before a batch ships, so your spec sheet and our mill certs always match.
| Specification | Typical Requirement / Description |
|---|---|
| Product Name | Aluminum Flux Balls |
| Flux Ball Diameter | 2.5 / 3.2 / 3.5 / 3.7 / 4.0 mm |
| Compatible Stud Range | Approx. M10–M25 |
| Material | Aluminum-based flux material |
| Shape | Spherical |
| Application | Flux positioning for stud welding |

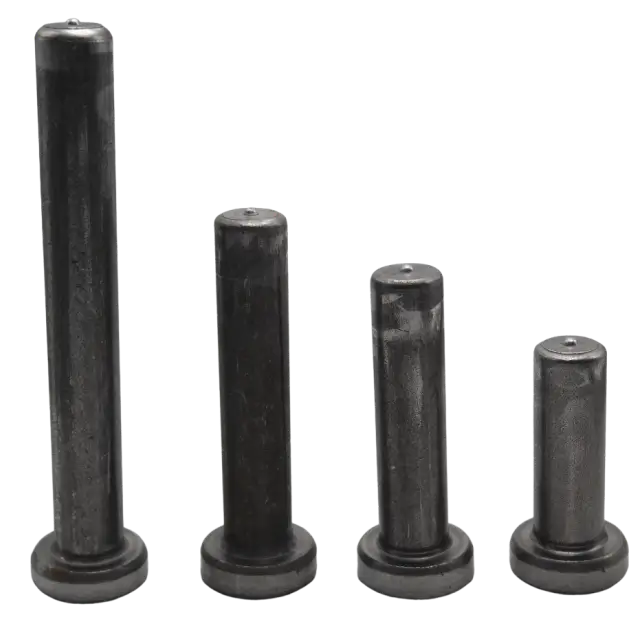

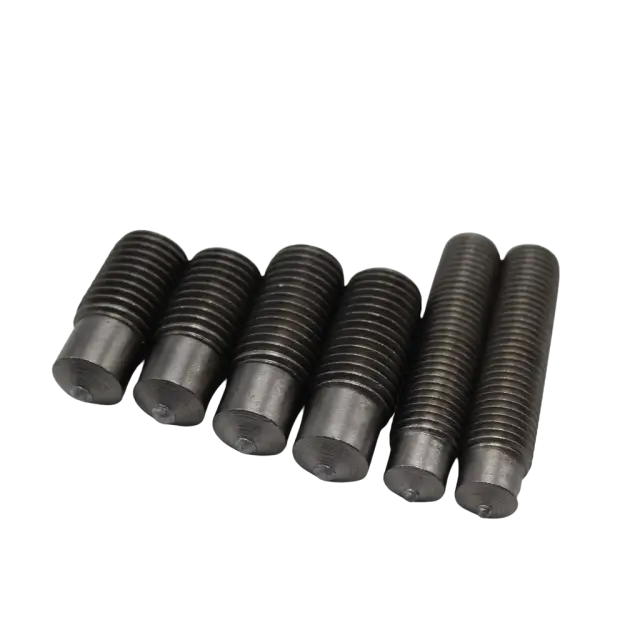

| Typical Stud Type | Shear studs and compatible headed studs |
| Welding Process | Drawn Arc Stud Welding |
| Installation | Manual or automated fixing |
| Size Consistency | Controlled manufacturing dimensions |
| Packaging | Bulk packaging / Customized packaging |
| OEM / Custom Sizes | Available upon request |
| Bulk Supply | Available |
Note: Aluminum Flux Ball diameter must match the flux cavity of the specific weld stud or shear stud being used — see the Buying Guide below for selection help.
Need the full Aluminum Flux Ball specification sheet for your procurement team?
Sizing
Available Sizes & Custom Options
Five standard Aluminum Flux Ball diameters cover most shear stud and weld stud programs. Need something outside this range? Our factory produces custom and OEM Aluminum Flux Balls to your drawing.
Ø2.5mm
Fits M10 studs
Ø3.2mm
Fits M13 studs
Ø3.5mm
Fits M16 studs
Ø3.7mm
Fits M19–M22 studs
Ø4.0mm
Fits M25 studs
Custom & Bulk Programs
OEM Aluminum Flux Balls
Private-Label & Custom Diameter
Non-standard diameters, custom packaging, and private-label bottles for stud welding product dealers and distributors.
Bulk Aluminum Flux Balls
Container-Volume Pricing
Tiered pricing on bulk Aluminum Flux Balls for fastener factories and stud welding companies buying by the container.
Not sure which diameter matches your stud drawing?
The Weld Cycle
How Aluminum Flux Balls Work
From arc ignition to solidification, the Aluminum Flux Ball is active for a fraction of a second — but that moment determines the weld quality. Here is the sequence, in order.
Arc Ignition
The stud gun draws an arc between the stud tip — loaded with the flux ball — and the base metal, creating a molten pool.
Flux Ball Melts
Arc heat melts the aluminum flux ball first, releasing it into the pool exactly as the weld pool forms.
Deoxidation
Molten aluminum bonds with oxygen in the pool, carrying oxides and impurities up and out of the fusion zone.
Plunge & Solidify
The stud plunges into the cleaned pool; the weld solidifies into a full-strength, 360° fusion collar.
Want a technical walkthrough of the flux ball weld cycle for your team?
How They’re Installed
Product Applications & Installation Methods
An Aluminum Flux Ball has to be seated into the stud tip before welding. How it gets seated — by hand or by machine — has a direct effect on ball shape, fixing strength, and final weld consistency.
Method 1

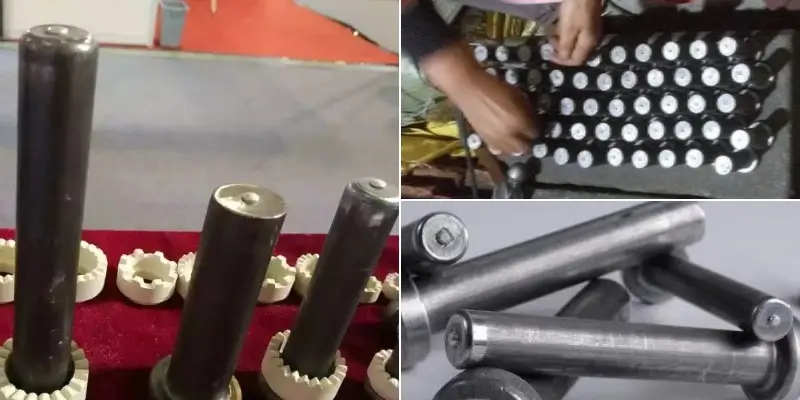

Traditional Manual Installation
Aluminum Flux Balls are traditionally fixed onto the end of weld studs or shear studs by manual hammering. This method is still widely used in small-volume production, but manual installation depends heavily on operator experience and consistency — repeated hammer strikes can flatten the ball out of its round shape.
Low equipment investment
Suitable for small batches
Time-consuming
Higher labor cost
Inconsistent fixing quality
Possible ball deformation
Method 2

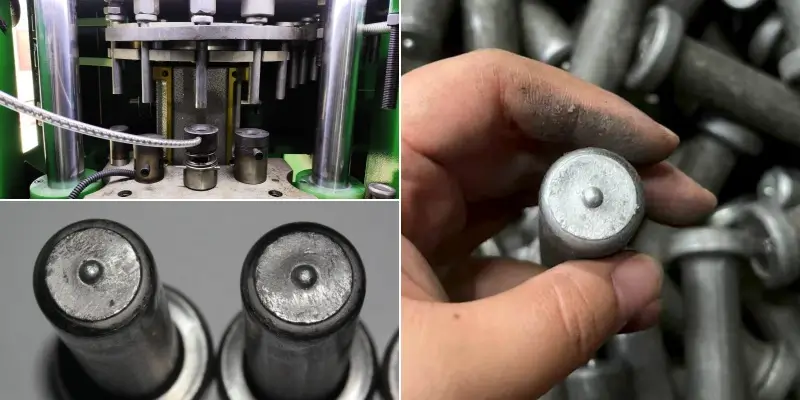

Automatic Flux Ball Installation
Compared with manual installation, automatic fixing keeps the Aluminum Flux Ball firmly positioned without deformation, improving both appearance and welding consistency — a common upgrade path for shear stud producers moving from small batches to volume production.
Uniform position
Round ball shape
Reduced labor cost
Better welding consistency
Strong fixing
Higher production efficiency
Manual vs. Automatic Installation
| Item | Manual Installation | Automatic Installation |
|---|---|---|
| Installation Speed | Low | High |
| Labor Requirement | High | Low |
| Ball Shape | May deform | Maintains original shape |
| Fixing Strength | Operator dependent | Consistent |
| Welding Consistency | Variable | Stable |
| Appearance | Inconsistent | Uniform |
| Suitable Production | Small batch | Mass production |
Aluminum Flux Ball Weight & Quantity Reference
Aluminum Flux Balls are typically supplied by weight (kg) rather than piece count, so knowing roughly how many balls are in a kilogram makes it much easier to calculate an order quantity.
Aluminum Flux Balls are typically supplied by weight (kg). The approximate quantity per kilogram depends on the ball diameter. The values below are calculated based on spherical geometry using our standard material (Al ≈99.63%, Fe ≈0.264%, theoretical density ≈2.70 g/cm³). Actual quantities may vary slightly due to manufacturing tolerances — use ±2% as a purchasing reference range.
| Ball Diameter | Approx. Weight / Ball | Approx. Quantity per kg |
|---|---|---|
| 2.5 mm | 0.022 g | ≈45,300 pcs/kg |
| 3.2 mm | 0.046 g | ≈21,600 pcs/kg |
| 3.5 mm | 0.061 g | ≈16,500 pcs/kg |
| 3.7 mm | 0.072 g | ≈14,000 pcs/kg |
| 4.0 mm | 0.090 g | ≈11,100 pcs/kg |
Calculation basis: material purity Al ≈99.63% / Fe ≈0.264%, theoretical density ≈2.70 g/cm³, assuming a standard solid sphere. Actual piece counts may vary slightly with manufacturing tolerance and packaging weight.
How Many Aluminum Flux Balls Do I Need?
Example: producing 100,000 shear studs using 3.5 mm Aluminum Flux Balls.
100,000 studs = 100,000 flux balls
100,000 ÷ 16,500 pcs/kg ≈ 6.1 kg
≈ 6.1 kg required
Tell us your stud size and monthly volume — we’ll confirm the right flux ball diameter and order weight.
Factory Quality Control
Quality Control for Aluminum Flux Balls
Every batch of Aluminum Flux Balls is inspected before shipment to ensure consistent dimensions, material quality, and reliable production standards. Each production batch undergoes dimensional inspection, visual quality checks, and packaging verification to help maintain consistent product performance.
At ZOC Machinery, Aluminum Flux Balls are manufactured under an ISO 9001 quality management system with complete batch traceability. From raw material inspection to final packaging, our quality control process is designed to provide dependable products for fabricators, distributors, and industrial stud welding applications worldwide.

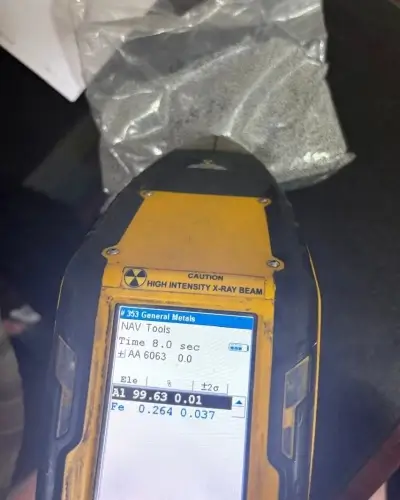

Incoming Material Test
Raw aluminum is verified for purity grade before it enters production.

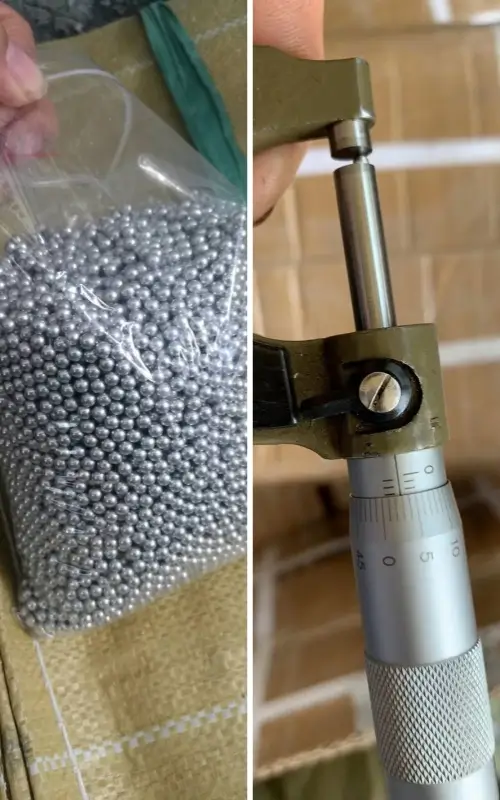

Dimensional Sampling
Ball diameter and roundness are sampled against tolerance on every batch.
Surface Inspection
Balls are checked for oxidation, pitting, or surface contamination.
Sealed Packaging Check
Moisture-sealed bottles are verified before cartons are closed for export.
Ask for batch-level QC reports with your next Aluminum Flux Ball order.
Ready to Ship

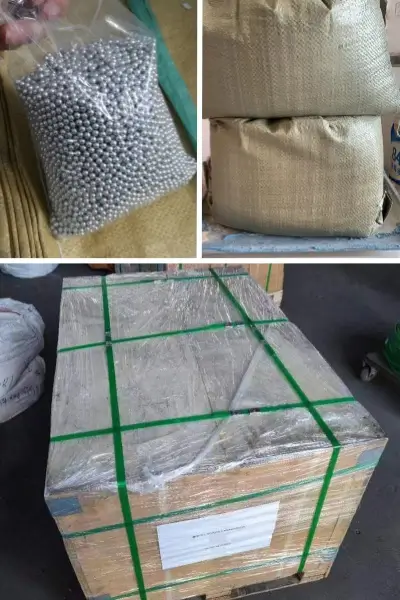

Packaging & Delivery
Aluminum Flux Balls are packed in moisture-sealed bottles, boxed into export cartons, and palletized for container loading — protecting purity and roundness from our factory floor to your job site.
As a stud welding equipment and accessories factory shipping to 60+ countries, we coordinate flux ball shipments alongside your stud welding machines, guns, or shear stud flux ball fixing machines for a single consolidated delivery.
Unit Packaging
Sealed Pouches
Moisture-sealed packaging designed to protect purity during transit and storage.
Carton Packing
Export Cartons
Bottles boxed into reinforced export cartons labeled by diameter and batch number.
Lead Time
7-10 Days Production
Standard diameters ship from stock; custom orders typically produce in 7-10 days.
Shipping
Sea, Air & Express
FOB, CIF, or door-to-door delivery arranged through our regular freight partners.
Combine your Aluminum Flux Ball order with welding equipment for one shipment.
Before You Order
How to Choose Aluminum Flux Balls
Four checks to run before placing an Aluminum Flux Ball order, so the balls you receive match your stud, your standard, and your budget.
Match the Stud Diameter
Confirm your shear stud or weld stud diameter, then pick the flux ball size that fits its tip cavity.
Check Aluminum Purity
Ask for the purity grade — High Purity Aluminum Flux Balls (99.5%+) give the most reliable deoxidation.
Confirm Standard Compliance
Verify AWS D1.1 / EN ISO 13918 compliance if your project requires certified stud welding consumables.
Verify the Factory
Compare Aluminum Flux Ball price against factory-direct offers and ask for a real production video or audit.
Send your stud drawing and we’ll confirm the right flux ball spec and price the same day.
Complete the Order
Related Products
Aluminum Flux Balls are one piece of the stud welding process. Explore the rest of our factory-direct range.
Automated equipment for seating flux balls into stud tips before welding.
Quick Answer
Frequently Asked Questions About Aluminum Flux Balls
Choosing the right Aluminum Flux Balls is essential for achieving consistent welding performance and efficient production. Below are answers to the most common questions from fabricators, distributors, and industrial buyers regarding available sizes, applications, customization, packaging, and factory supply.
Aluminum Flux Balls are used in drawn arc stud welding to provide a controlled amount of flux at the stud end during the welding process. They help support stable welding conditions and are commonly used with shear studs and other compatible stud types.
Standard Aluminum Flux Balls are available in diameters of 2.5 mm, 3.2 mm, 3.5 mm, 3.7 mm, and 4.0 mm, covering typical stud sizes from approximately M10 to M25. Custom sizes can also be manufactured according to customer requirements.
The appropriate Aluminum Flux Ball size depends on the stud diameter and welding application. Selecting the correct diameter helps ensure proper positioning and consistent welding performance. Our engineering team can recommend the most suitable size for your products.
Yes. Our Aluminum Flux Balls are suitable for both manual installation and automated fixing processes. They are widely used in high-volume manufacturing lines where consistent dimensions and stable feeding are important.
Yes. ZOC Machinery provides OEM and custom manufacturing services for Aluminum Flux Balls, including customized diameters, packaging, labeling, and bulk supply to meet different market and production requirements.
ZOC Machinery is a professional manufacturer of Aluminum Flux Balls with stable production capacity, strict quality control, and worldwide export experience. We provide consistent product quality, flexible customization, factory-direct supply, and responsive technical support for distributors, fabricators, and industrial customers.
