Ceramic Ferrules for Reliable Stud Welding
High-quality ceramic ferrules designed to support stable stud welding, consistent weld formation, and reliable performance across demanding industrial applications. ZOC Machinery supplies ceramic ferrules in a wide range of sizes and configurations, with options for standard and customized requirements.
Home > Stud Welding Consumables > Ceramic Ferrules
Product Overview
What Are Ceramic Ferrules?
Ceramic ferrules are single-use, heat-resistant ceramic components placed around a weld stud during drawn arc stud welding. They help contain the molten weld pool, shape the weld collar, and protect the welding area from atmospheric contamination during the welding cycle.
The ferrule’s size, shape, and fit should match the stud diameter and welding application. A properly selected ceramic ferrule helps maintain consistent weld formation, control spatter, and support reliable stud welding results.
- Arc Shielding: Blocks wind, moisture and oxygen from the weld pool so the arc burns cleanly, reducing porosity and weak welds on site.
- Bead Shaping:Contains molten metal in a controlled cavity, producing the smooth 360° fillet required by AWS D1.1 and EN ISO 13918 inspection.
- Consistent Output:Uniform wall thickness and firing quality mean every ferrule in the batch behaves the same way under the gun, shift after shift.
Not sure which ceramic ferrule fits your stud welding gun?
Product Range

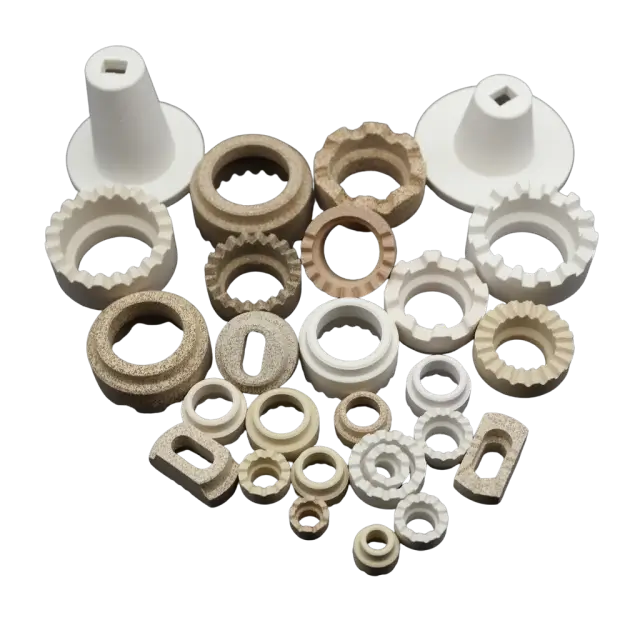

Ceramic Ferrule Types We Manufacture
Our ceramic ferrule range covers standard configurations and application-specific designs for different stud diameters, welding positions, and stud welding requirements.
Standard Ceramic Ferrules
BEST SELLER
Full range of standard sizes, manufactured for consistent dimensions and reliable performance in general stud welding applications.

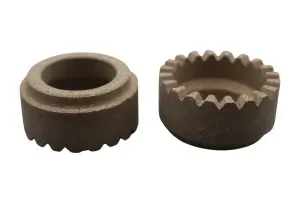

Through-Deck Ceramic Ferrules
CONSTRUCTION GRADE
Designed for welding through steel decking, with deeper cavity profiles to support reliable ferrule performance in composite floor applications.

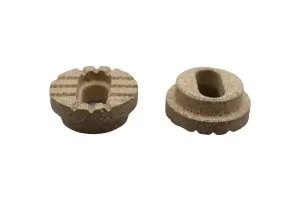

Refractory Anchoring Ferrules
HIGH-TEMPERATURE
Designed for refractory anchoring applications in furnaces, boilers, kilns, and other high-temperature industrial environments.

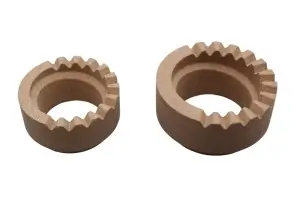

Custom Ceramic Ferrules
MADE TO ORDER
Custom diameters, heights, cavity profiles, and special geometries manufactured from customer drawings, samples, or application requirements.
Looking for a ceramic ferrule size not shown here?
Technical Data
Ceramic Ferrule Specifications
Accurate ceramic ferrule dimensions matter as much as the stud itself. Reference the table below or contact our team for a full specification sheet.
Understanding Our Ceramic Ferrule Types:
- PF Type: Standard ceramic ferrules designed for general drawn arc stud welding.
- UF Type: Through-deck ceramic ferrules optimized for steel deck and composite floor welding.
- WTD Type: Wide-tooth through-deck ceramic ferrules specifically built for composite metal decking.
- RF Type: Refractory anchoring ferrules engineered for high-temperature refractory anchoring applications.
| Model | D₁ (±0.5) | D₂ (±1) | D₃ (±1) | H (≈) |
|---|---|---|---|---|
| PF6 | 5.6 | 9.5 | 11.5 | 6.5 |
| PF8 | 7.4 | 11.5 | 15 | 6.5 |
| PF10 | 9.2 | 15 | 17.8 | 6.5 |
| PF12 | 11.1 | 16.5 | 20 | 9 |
| PF16 | 15 | 20 | 26 | 11 |
| PF20 | 18.6 | 30.7 | 33.8 | 10 |
| PF24 | 22.8 | 30.7 | 38.5 | 18.5 |
| PF-12-2 | 11.1 | 20 | 23.8 | 6.5 |
| Model | D₁ (+0.5/-0) | D₂ (±1) | D₃ (±1) | H |
|---|---|---|---|---|
| UF6 | 6.2 | 9.5 | 11.5 | 8.7 |
| UF8 | 8.2 | 11 | 15 | 8.7 |
| UF10 | 10.2 | 15 | 17.8 | 10 |
| UF12 | 12.2 | 16.5 | 20 | 10.7 |
| UF13 | 13.1 | 20 | 22.2/26" | 11 |
| UF15 | 15.3 | 20 | 26 | 11 |
| UF16 | 16.3 | 26 | 30 | 13 |
| UF19 | 19.4 | 26 | 30.8 | 16.7 |
| UF22 | 22.8 | 30.7 | 38.5 | 18.5 |
| UF25 | 26 | 35.5 | 41 | 21 |
| Model | D₁ | D₂ | D₃ | H |
|---|---|---|---|---|
| WTD13 | 13.1±0.5 | 20±1 | 26 | 13 |
| WTD16 | 16.5±0.5 | 28±1 | 32 | 15 |
| WTD19 | 20.3±0.5 | 30.7±1 | 33.5 | 15.3 |
| WTD22 | 23.2±0.5 | 32.5±1 | 38.5 | 19.5 |
| WTD25 | 26±0.5 | 36±1 | 42 | 21 |
| Model | D₁ (+0.4/-0) | D₂ (±1) | D₃ (±1) | H |
|---|---|---|---|---|
| RF6 | 6.2 | 9.5 | 12.2 | 10 |
| RF8 | 8.2 | 12 | 15.3 | 9 |
| RF10 | 10.2 | 15 | 18.5 | 11.5 |
| RF12 | 12.2 | 17 | 20 | 13 |
| RF16 | 16.3/14ᵃ | 20.5/26.2ᵃ | 26.5/32.5ᵃ | 15.3/8.8ᵃ |
| RF20 | 20.3/17.5ᵃ | 26.2/28.5ᵃ | 32 | 22/9ᵃ |
| RF24 | 24.3/21ᵃ | 26.2/30.4ᵇ | 33/36ᵇ | 25/13ᵃ |
| Note: | Dimensions marked with ᵃ and ᵇ are optional sizes based on specific national regulations or application requirements. | |||
Ceramic Ferrule Sizes
M6 to M25 stud diameters covered as standard, with intermediate sizes available on request.
Precise Dimensions
Wall thickness and cavity depth held to tight tolerances for a consistent, repeatable weld pool shape.
Compatibility
Fully compatible with standard stud welding equipment, ensuring each ceramic ferrule fits securely during operation.
Heat Performance
Engineered to withstand extreme arc temperatures without cracking, ensuring every ceramic ferrule delivers clean, reliable welds.
Need the full ceramic ferrule dimensions datasheet?
Download the spec sheet or send us your stud diameter for a matched recommendation.
Material Science
Ceramic Ferrule Material & Manufacturing
A ceramic ferrule is typically made from refractory ceramic materials selected for high-temperature resistance, dimensional stability, and resistance to thermal shock. The material must retain its shape during the intense heat generated by the stud welding process while helping contain the molten weld pool.
The manufacturing process generally includes raw material preparation, forming, drying, and controlled firing. Ceramic ferrules are pressed or molded to achieve consistent dimensions and wall thickness, then fired at controlled temperatures to develop the required hardness, strength, and thermal stability. Proper drying and firing are also important for reducing cracking, deformation, and moisture-related problems during storage and use.
For this reason, the material composition and manufacturing process have a direct influence on ceramic ferrule dimensions, mechanical strength, thermal performance, and consistency. Consistent production helps ensure that each ferrule fits the corresponding stud correctly and performs reliably throughout the welding cycle.
Our Ceramic Ferrule Production Process
Material Blending
Refractory ceramic materials is mixed and refined to a consistent, contamination-free grade.
Press Molding
Precision steel dies press each ferrule to exact wall thickness and cavity dimensions.

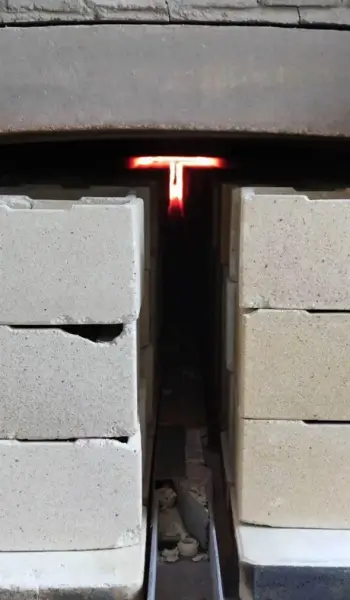

Kiln Firing
Controlled high-temperature firing hardens the ceramic and locks in dimensional stability.
Inspection & Sorting
Every batch is checked for cracks, warping and size tolerance before it clears for packing.
Want to see our ceramic ferrule production line in action?
Where They’re Used
Ceramic Ferrule Applications
Ceramic ferrules are commonly used in drawn arc stud welding across a wide range of steel construction and industrial applications. From high-rise steel structures and bridges to shipbuilding, offshore platforms, and infrastructure projects, they help support consistent weld formation during the welding process.
A high-performance ceramic ferrule is essential for drawn arc stud welding on multi-story steel structures and metal deck floors. It concentrates the welding arc, prevents molten steel splashing, and shapes a uniform weld collar to deliver maximum shear capacity under heavy loads.
Engineered for demanding civil engineering projects, the high-purity ceramic ferrule provides exceptional thermal resistance and arc containment. It enables deep-penetration welds on heavy composite bridge decks, highway viaducts, and rail transit structures.
Specially designed to withstand severe marine environments, our ceramic ferrule series ensures full-strength, pore-free studs on deck plates, bulkheads, and offshore platforms—maintaining structural integrity even under dynamic wave action and vibration.
Vital for high-temperature industrial applications, heat-resistant ceramic ferrule models are used to anchor Y-anchors, V-anchors, and threaded studs inside power plant boilers, cement kilns, petrochemical heaters, and smelting furnaces.
Tell us your application and we’ll match the right ceramic ferrule.
Buyer’s Guide
Ceramic Ferrule Selection Guide
Four factors determine ceramic ferrule compatibility with your project. Work through them in order to narrow down the right part number.
STEP 01
Confirm Stud Diameter
Match the ferrule's inner cavity to your stud's exact diameter — an oversized ferrule weakens arc shielding.
STEP 02
Check Welding Position
Flat, horizontal and overhead welding positions each call for a different ferrule cavity depth.
STEP 03
Identify Base Material
Through deck welding onto galvanized steel needs a ferrule built to burn cleanly through zinc coating.
STEP 04
Factor In Site Conditions
Wind, humidity and outdoor exposure all affect how much arc shielding your ceramic ferrule needs to provide.
| Application / Use Case | Ceramic Ferrule Type | Primary Selection Factor | What to Check | Best Suited For |
|---|---|---|---|---|
| General Steel Fabrication | Standard Ceramic Ferrule | Stud diameter and ferrule fit | Ferrule dimensions and stud compatibility | Standard, high-volume applications |
| Structural Steelwork | Standard Ceramic Ferrule | Size consistency | Ferrule ID, height, and geometry | Repetitive structural welding |
| Steel Decking | Standard Ceramic Ferrule | Ferrule size and fit | Match the ferrule to the required stud size | High-volume decking applications |
| Bridge & Infrastructure | Standard / Heavy-Duty Ceramic Ferrule | Thermal and mechanical requirements | Application conditions and ferrule strength | Demanding structural applications |
| Shipbuilding | Standard / Heavy-Duty Ceramic Ferrule | Geometry and working conditions | Ferrule dimensions and application requirements | Production and field welding |
| Limited-Access Areas | Special Geometry Ceramic Ferrule | Available clearance | Ferrule shape and surrounding space | Restricted welding locations |
| Automated Welding | Precision Ceramic Ferrule | Dimensional consistency | Ferrule geometry and repeatability | Automated or repetitive production |
| Custom Applications | Custom Ceramic Ferrule | Project-specific geometry | Technical drawing, sample, or specifications | Special OEM and project requirements |
Send us your stud specs and we’ll confirm the right ferrule for you.
Troubleshooting
Common Welding Problems & Solutions
Most stud welding defects trace back to ferrule selection or handling. Here’s how to diagnose and fix the most frequent issues.
Ferrule Cracking Before Weld
Likely Cause
Moisture absorption or rough handling during ceramic ferrule installation.
Fix
Store in sealed, moisture-proof packaging and inspect for hairline cracks before loading.
Incomplete Fillet / Weak Bead
Likely Cause
Wrong ferrule size allowing wind or contaminants into the arc during welding.
Fix
Confirm ceramic ferrule dimensions match the stud diameter using our selection guide above.
Ferrule Fused to the Weld
Likely Cause
Excessive weld time/current or a ferrule fired at inconsistent kiln temperatures.
Fix
Recheck welding parameters and source ferrules from a factory with controlled firing quality.
Difficult Ferrule Removal
Likely Cause
Ferrule left in place too long after welding or a mismatch in cavity clearance.
Fix
Tap the ferrule free while it’s still warm; oversized clearance ferrules release more easily.
Still seeing weld defects? Send us photos for a free diagnosis.
Logistics & OEM
Ceramic Ferrule Packaging & OEM Service
Every order ships in moisture-proof, breakage-resistant packaging — with private-label and custom packaging available for OEM partners.
Standard Export Packaging
Counted units in partitioned cartons, palletized and export-labeled for container loading.

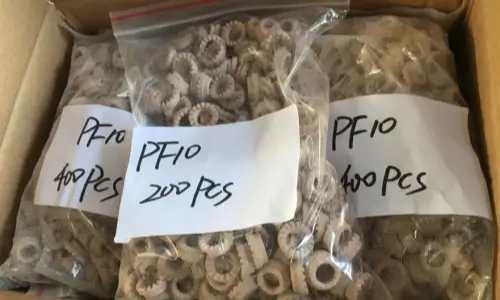

Moisture-Proof Protection
Sealed inner packing keeps ceramic ferrules dry through long transit and humid storage.
Palletization & Stretch Wrapping
Heavy-duty stretch-wrapped pallets ensuring moisture-proof stability during maritime transit.
Bulk Ceramic Ferrules
Palletized bulk packing with flexible carton counts for high-volume construction contracts.
7 Days
Standard Production Time
Sea / Air
Shipping Methods Available
60+
Countries Regularly Exported To
48H
Global Spare Parts Support
Need custom packaging or private-label ceramic ferrules?
Tell us your branding requirements and target order volume — we’ll quote OEM terms directly.
Quick Answer
Frequently Asked Questions About Ceramic Ferrule
Choosing the right ceramic ferrule is important for achieving consistent stud welding results. Below are answers to some of the most common questions about ceramic ferrule types, sizes, materials, compatibility, and selection to help you identify the most suitable solution for your application.
A ceramic ferrule is used during drawn arc stud welding to contain the molten weld pool, help form a uniform weld collar, and support a stable welding process. It is a single-use ceramic component that is removed after welding.
The correct ceramic ferrule should match the stud diameter, ferrule dimensions, and intended welding application. Selecting the proper size and geometry helps ensure good fit, consistent weld formation, and reliable performance.
Yes. Ceramic ferrules are manufactured in a wide range of sizes to match different stud diameters and application requirements. Standard sizes are commonly available, while custom dimensions and special designs can also be produced for specific projects.
Most ceramic ferrules are produced from refractory ceramic materials that provide excellent heat resistance, dimensional stability, and thermal shock resistance. These properties allow the ferrule to maintain its shape throughout the welding cycle.
Yes. Many manufacturers offer custom ceramic ferrules for non-standard stud sizes, special geometries, or unique welding applications. Custom production may be based on technical drawings, samples, or project specifications.
No. Ceramic ferrules are designed for single use. After the welding process is complete, the ferrule is removed and should be replaced with a new one for the next weld to maintain consistent welding quality.
Need the Right Ceramic Ferrule for Your Project?
Request a Factory-Direct Ceramic Ferrule Quote
Share your stud size, ceramic ferrule requirements, quantity, or drawing, and our team will help you identify the right ceramic ferrule and provide a quotation, production lead time, and technical support.
