Product Introduction
A weld stud is a fastener — headed, threaded, or plain-shank — that is fusion-welded to a base metal in a single arc discharge, using a stud welding gun instead of drilling and bolting. It creates a full-penetration joint in under a second, giving structural steel, sheet metal, and precast concrete a fixing point as strong as the parent material.
The part looks simple. What determines whether it welds clean or fails inspection is upstream: steel chemistry, flux-tip consistency, shank straightness, and dimensional tolerance. ZOC controls all four in-house, so every stud that leaves our line performs the same way on your gun, at your settings, on your site.
Not sure which stud type fits your base material and load spec?
Product Range
From drawn-arc studs to insulation anchors, each range is produced on dedicated tooling — so you can single-source a full project instead of qualifying multiple vendors.

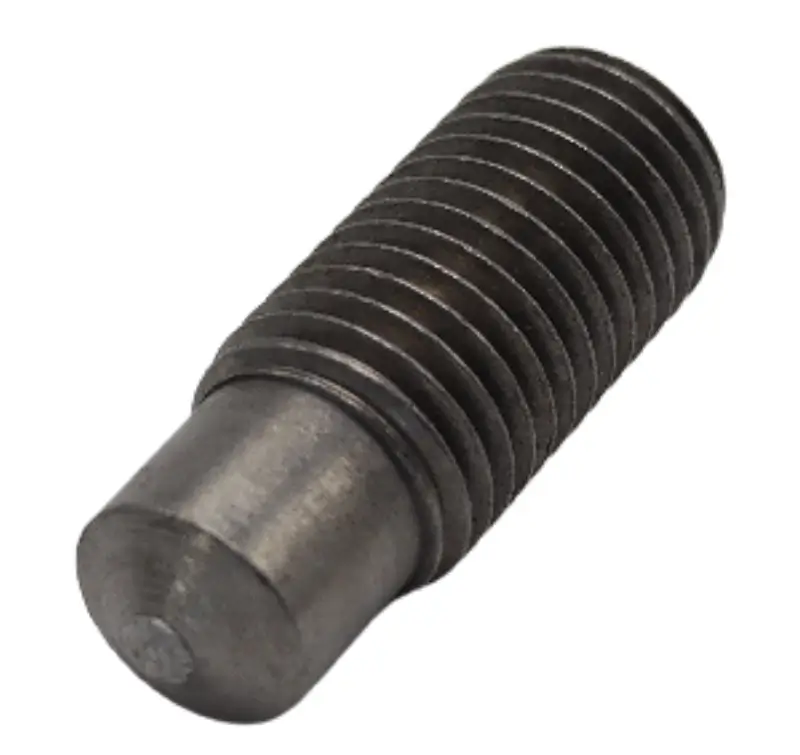

High-strength weld studs designed for drawn arc stud welding applications. Available in various diameters and lengths, they are widely used in structural steel, construction, shipbuilding, and heavy industrial projects.
Ø6mm – Ø25mm | Mild & Stainless Steel

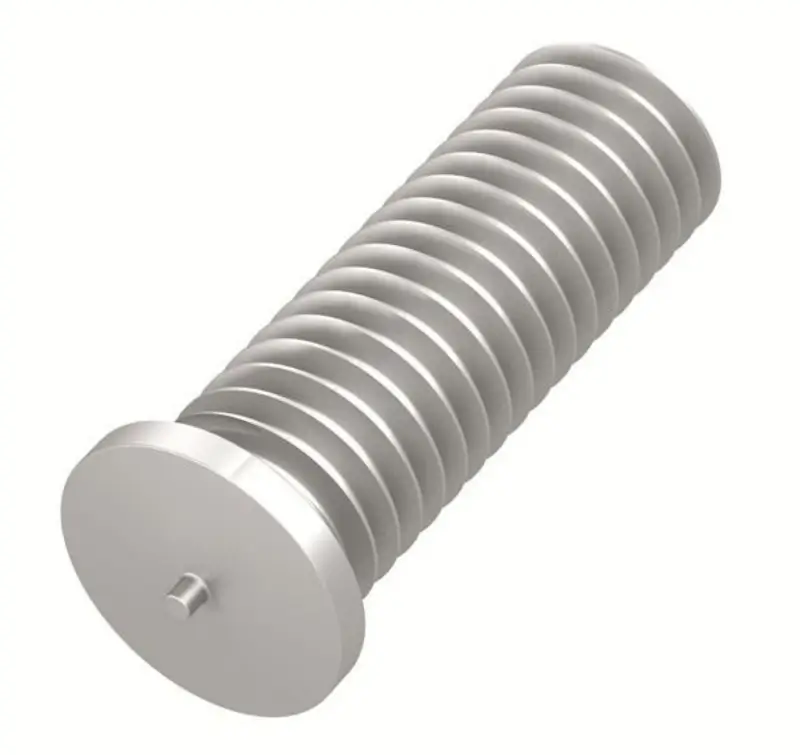

Precision weld studs for capacitor discharge stud welding, offering fast welding speed and low heat input. Ideal for thin sheet metal, automotive, electrical equipment, and general fabrication applications.
Ø3mm – Ø12mm | Full & Partial Thread

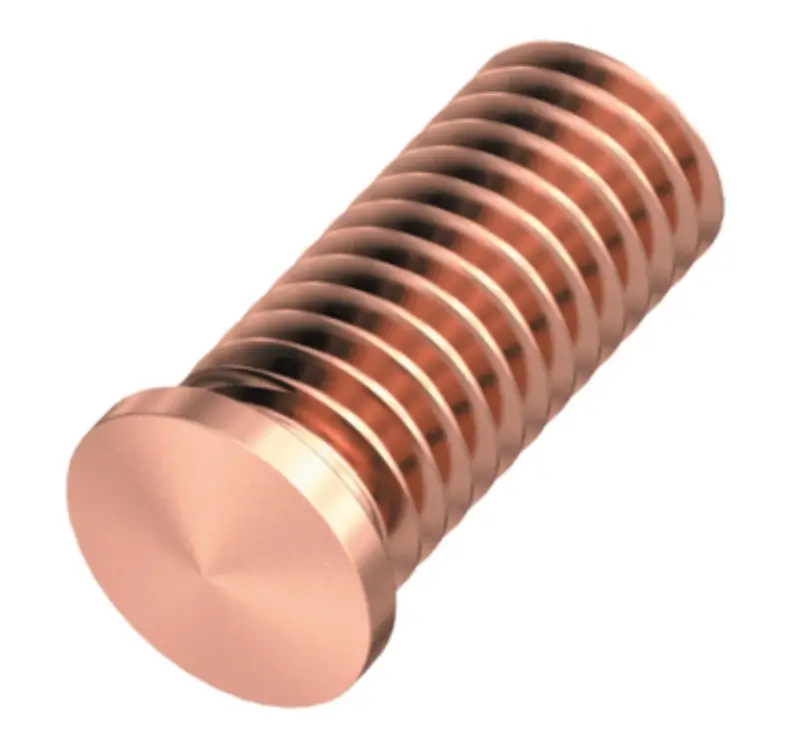

Efficient weld studs developed for short cycle stud welding processes. They provide reliable fastening performance with high production efficiency for industrial manufacturing and metal fabrication.
Ø6mm – Ø16mm | Grade 4.8 / 4.6 Steel

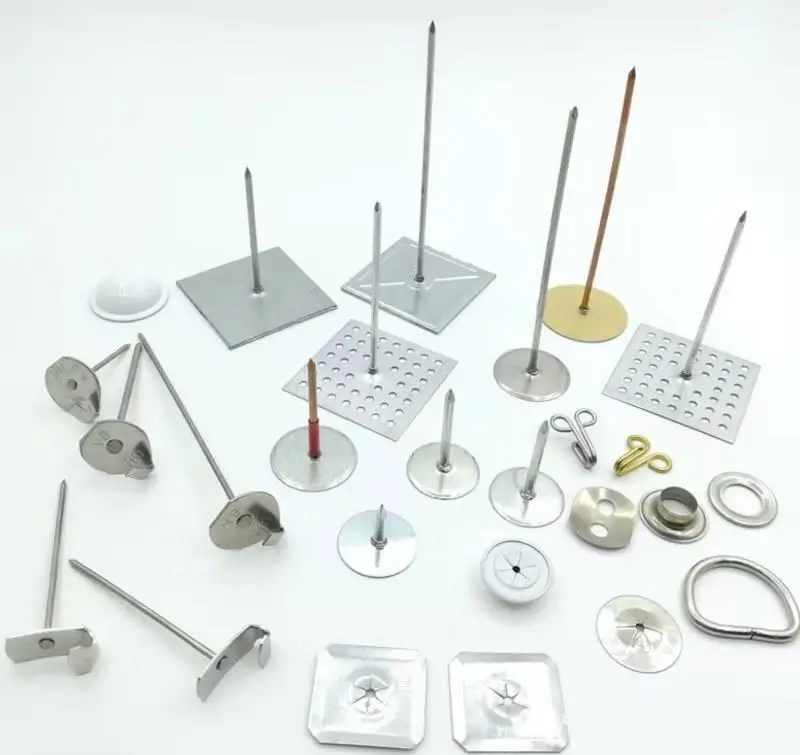

Specialized weldable pins designed for fixing thermal, acoustic, and refractory insulation materials. Suitable for insulation systems in industrial equipment, HVAC, boilers, and construction applications for global projects.
L=20mm – 300mm | Mild Steel
Need a stud type outside this list? We tool up for custom drawings too.
Technical Specifications
Every dimension and mechanical property below is verified against AWS D1.1 / ISO 13918 before a batch ships, so your spec sheet and our mill certs always match.
| STUD TYPE | DIAMETER RANGE | LENGTH RANGE | MATERIAL | TENSILE STRENGTH | STANDARD |
|---|---|---|---|---|---|
| Drawn Arc Weld Studs | Ø6 – Ø25 mm | 25 – 300 mm | Low Carbon Steel / Stainless Steel | ≥ 450 MPa | ISO 13918 / AWS D1.1 |
| CD Weld Studs | Ø3 – Ø12 mm | 5 – 50 mm | Mild Steel / Stainless Steel / Aluminum | ≥ 350 MPa | ISO 13918 / DIN EN ISO 13918 |
| Short Cycle Weld Studs | Ø6 – Ø16 mm | 10 – 100 mm | Low Carbon Steel / Stainless Steel | ≥ 400 MPa | ISO 13918 / Customer Specification |
| Insulation Pins | Ø2 – Ø6 mm | 20 – 300 mm | Low Carbon Steel / Stainless Steel / Galvanized Steel | ≥ 380 MPa | GB/T 10433 / Customer Specification |
Explore the technical specifications of ZOC Machinery weld studs, including stud types, sizes, materials, tensile strength, and welding standards. Our weld studs are available in various configurations for industrial, construction, and insulation applications.
±0.1mm diameter, ±0.2mm length
Plain, zinc-plated, or HDG
From 3mm steel plate
ISO 9001, CE, mill test reports
Working to a drawing with different specs? Send it over and we’ll confirm feasibility within 24 hours.
Selection Guide
Skip the guesswork. These are the four variables that actually determine which weld stud type, diameter, and grade fits your job.
Confirms whether drawn-arc or short-cycle welding is achievable without burn-through.
Shear, tension, or fatigue loading sets the diameter and grade you need.
Coastal, chemical, or high-humidity sites call for stainless or a plated finish.
Your gun's drawn-arc or CD capability narrows down which stud series will actually weld.
| YOUR SITUATION | RECOMMENDED TYPE | WHY IT FITS |
|---|---|---|
| Structural steel fabrication and heavy-duty metal connections | Drawn Arc Weld Studs | High-strength welding performance suitable for steel structures, bridges, shipbuilding, and heavy industrial applications |
| Thin sheet metal, automotive parts, and precision fastening | CD Weld Studs | Low heat input and fast welding process minimize deformation on thin metal surfaces |
| High-volume production and automated welding operations | Short Cycle Weld Studs | Fast welding cycles and reliable performance improve productivity in industrial manufacturing |
| Ductwork, tank, boiler, and equipment insulation fixing | Insulation Pins | Lightweight weldable pins designed for securing thermal, acoustic, and refractory insulation materials |
Find the right weld studs for your project with our application selection guide. This table explains the recommended weld stud types for different situations, including structural steel, thin sheet metal, industrial manufacturing, and insulation fixing applications.
Still unsure which fits your drawing? Send us your specs for a free recommendation.
Industry Applications
From high-rise frames to offshore platforms, the same batch-controlled studs are qualified across these four sectors.

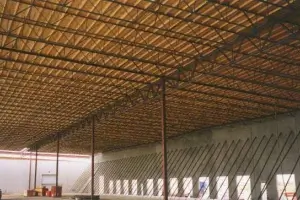

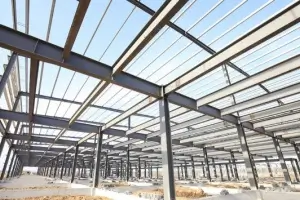

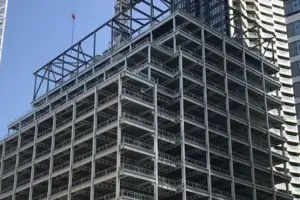

Optimized for welding high-strength shear connector studs on thick steel beams and metal deck flooring under heavy loads.
Delivers exceptional arc stability and deep penetration required for massive concrete-steel composite bridge decks and infrastructure.
Engineered with automatic grid voltage compensation to combat harsh shipyard power fluctuations, ensuring rust-proof, full-strength welds.
Perfect for dense, heat-resistant stud and anchor installation inside power plant boilers, industrial linings, and smelting furnaces.
Have a project outside these sectors? Tell us the application and we’ll confirm fit.
Product Advantages
Factory-direct doesn’t just mean a better price — it means control over every variable that determines whether a stud welds clean the first time.
In-house cold heading and heat treatment mean tolerance and tensile strength are locked before the stud ever ships — not inspected after the fact by a trading middleman.
ISO 9001, AWS D1.1, EN ISO 13918, and CE certification, with every batch backed by a mill test report you can hand to your inspector.
Non-standard length, diameter, or thread specs are tooled to your drawing, so a project spec doesn't force you to redesign around a catalog part.
Standard items ship from stock; custom runs hold to a quoted production schedule, so your site sequencing doesn't stall on a supplier delay.
See how these advantages translate into your landed cost.
Manufacturing Process
Every stage is logged against the batch number, so any stud you receive can be traced back to its raw material heat and process settings.

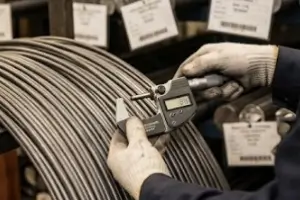

Incoming wire rod checked for chemistry & diameter

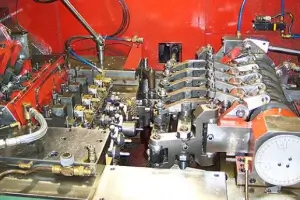

Shank and head formed on multi-station formers

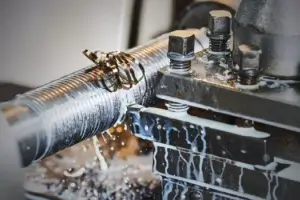

CNC thread rolling and shank turning to tolerance

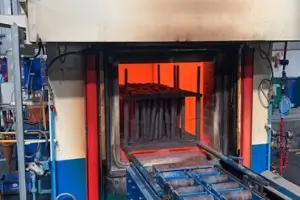

Controlled hardening for target tensile strength

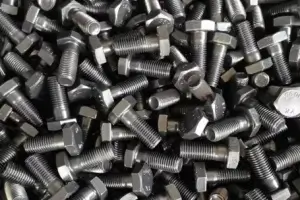

Zinc plating or galvanizing per spec
Counted, boxed, and batch-labeled for export
Want to see this line in action before you commit?
Quality Inspection
Nothing leaves the factory on a visual check alone — every batch runs through mechanical, dimensional, and coating verification, with results kept on file against the batch number.

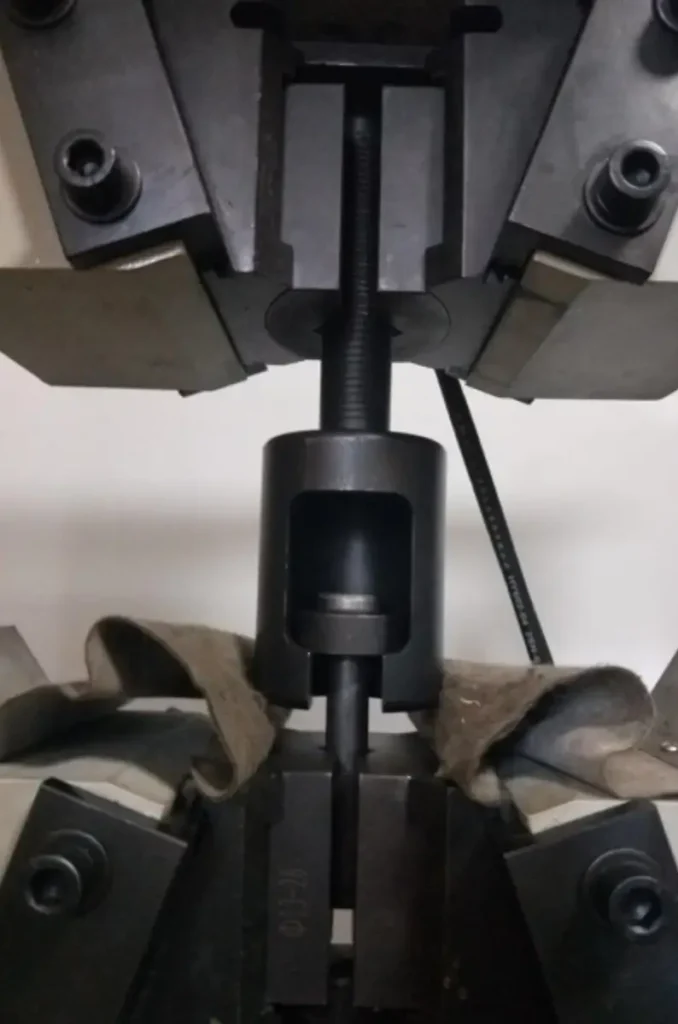

Sample studs pulled to failure and bend-tested per AWS D1.1
Diameter, length, and head geometry checked on calibrated gauges
Plated batches tested for corrosion resistance hours
Every shipment paired with a Material Test Report on request
Need MTR samples before placing an order?
Compatibility Guide
ZOC studs are dimensioned to standard ferrule sets and gun chucks, so switching supplier doesn’t mean requalifying your welding setup.
| PRODUCT TYPE | STUD DIAMETER / SIZE RANGE | SHIELDING / ACCESSORIES | COMPATIBLE WELDING GUN | TYPICAL POWER SOURCE |
|---|---|---|---|---|
| Drawn Arc Weld Studs | Ø6 – Ø25 mm | Ceramic Ferrule (RF / UF Type) | Heavy-Duty Drawn Arc Stud Welding Gun | Drawn Arc Stud Welder (800–2500A) |
| CD Weld Studs | Ø3 – Ø12 mm (M3–M12) | Tip / Flanged Base (Ferrule-Free) | Capacitor Discharge Stud Welding Gun | CD Stud Welder |
| Short Cycle Weld Studs | Ø3 – Ø12 mm (M3–M12) | Short-Cycle Ferrule (Optional) | Short-Cycle Stud Welding Gun | Short-Cycle Stud Welder |
| Insulation Pins | Ø2.7 – Ø3.4 mm | Self-Locking Washers / Caps | Insulation Pin Welding Gun / CD Gun | Compact CD Stud Welder |
This weld studs compatibility guide helps you choose the correct welding equipment and accessories for different stud types. It covers diameter ranges, shielding accessories, compatible welding guns, and power sources for drawn arc weld studs, CD weld studs, short cycle weld studs, and insulation pins.
Works with Nelson, KOCO, HBS, and Taylor-style guns
Matched ceramic ferrules available in the same order
Both thread systems produced on request
Mild steel, stainless steel, and select aluminum grades
Not sure your gun matches? Send us the model and we’ll confirm compatibility.
Project Cases
A sample of projects where ZOC weld studs were specified for demanding environments, from port infrastructure to desert climates.
GHANA · PORT INFRASTRUCTURE
High-strength weld studs supplied for a new composite deck warehouse structure at a coastal port facility.
42,000 weld studs · zero rejected welds on audit
UAE · ENERGY FACILITY
Heavy-duty drawn arc weld studs supplied to a Dubai facility rated to sustain 50℃ site temperatures.
Delivered to bonded warehouse within 48 hours
INDONESIA · COMMERCIAL BUILD
Threaded weld studs for façade bracket mounting across a 28-floor commercial tower structure.
On-time delivery across 6 phased shipments
BRAZIL · LOGISTICS HUB

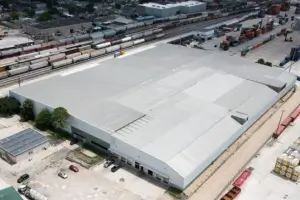

Insulation anchor pins and structural weld studs supplied for a large-span logistics warehouse roof system.
Single shipment covered full project scope
Want references or site photos from a project like yours?
Packaging & Shipping
Every carton is moisture-sealed and batch-labeled, so what arrives at your warehouse matches what was inspected at ours.
Counted and moisture-sealed for small to mid-size orders

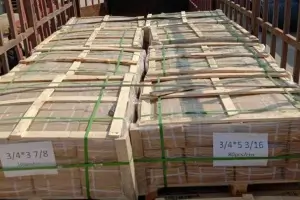

Fumigated pallets for bulk container loads, strapped and wrapped
For stainless and plated studs shipping to humid climates
Load plans optimized to maximize studs per container
Standard Production Time
Shipping Methods Available
Countries Regularly Exported To
Global Spare Parts Support
Ask about consolidated shipping if you’re ordering multiple product lines.
The Frequently Asked Questions (FAQ) section addresses key technical and commercial considerations for specifying and sourcing high-performance weld studs. Whether evaluating mechanical load requirements, international standard compliance (ISO 13918 / AWS D1.1), or process compatibility across Drawn Arc, CD, and Short Cycle welding systems, these answers provide clear, actionable insights to streamline procurement and ensure reliable structural connections.
Weld studs are specialized threaded or unthreaded metal fasteners designed to be fused directly onto a metal substrate using stud welding processes such as Drawn Arc, Capacitor Discharge (CD), or Short Cycle. Unlike traditional bolts, weld studs create a full-cross-section, permanent joint without requiring drilling, tapping, or access to the reverse side of the base material.
The main types of weld studs include Drawn Arc Weld Studs (ideal for heavy structural steel and thick plates), CD Weld Studs (designed for sheet metal and thin materials without backside marking), Short Cycle Weld Studs (suited for automated automotive and sheet fabrication), and Insulation Pins (used for securing thermal insulation materials).
Our weld studs are manufactured from high-quality carbon steel, stainless steel (AISI 304/316), and aluminum alloys. They can be reliably welded onto mild steel, structural steel, stainless steel, and galvanized sheet metal, depending on the chosen stud material and welding process.
Selecting the right weld studs depends on your base plate thickness, required load capacity, and welding equipment. As a general rule, Drawn Arc weld studs (Ø6mm to Ø25mm) are recommended for heavy load-bearing applications, while CD weld studs (M3 to M10) are preferred for light-duty sheet metal assembly.
Yes. All ZOC weld studs are manufactured in strict compliance with international standards, including ISO 13918 and AWS D1.1. Every batch undergoes rigorous quality control, including tensile strength testing, dimensional checks, and torque testing to ensure zero-defect performance on site.

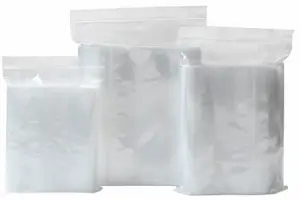

To prevent corrosion and transport damage, our weld studs are packaged in moisture-proof plastic inner bags, packed into heavy-duty corrugated export cartons, and secured on fumigated wooden pallets. We support both FCL (Full Container Load) and LCL shipments with quick dispatch times.
