Product Introduction
What Are Shear Studs, and Why Do Composite Structures Depend on Them?
Shear studs — also called shear connectors — are headed steel fasteners arc-welded onto structural steel beams before the concrete slab is poured. Once embedded, they lock the steel frame and the concrete deck into a single composite section.
- Mechanical interlock: the welded shank and forged head resist the horizontal shear force that develops between steel and concrete under load, so the two materials act as one beam instead of sliding against each other.
- Built for arc stud welding: every shear stud we produce is sized and flux-tipped for drawn-arc welding, so it fuses to the flange in under a second with a consistent, full-strength weld collar.
- The result on site: engineers get a composite deck that carries more load with less steel tonnage, fewer field bolts, and a faster erection schedule — which is why shear connectors are specified on nearly every steel-frame building and bridge deck today.
Need help specifying the right shear connector?
Product Series
A Full Range of Headed and Welded Shear Studs
From standard headed shear studs to project-specific welded shear studs, every diameter and length is rolled, forged and flux-tipped in-house — so you order one shear stud supplier for the whole bill of materials.

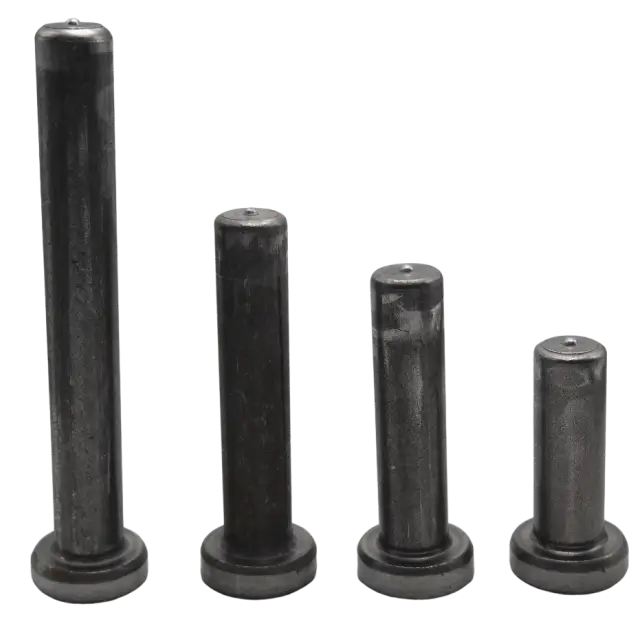

Type SD

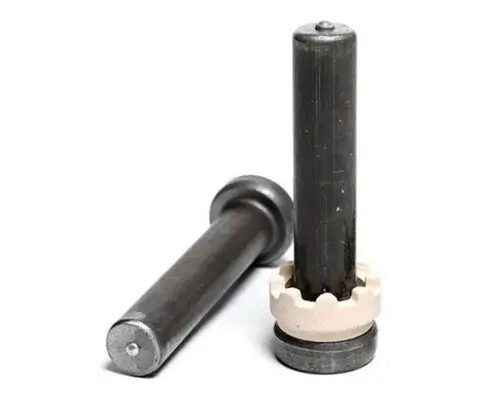

Standard Headed Shear Studs
Our highest-volume headed shear stud, forged to ISO 13918 Type SD and AWS D1.1 Type B for beam-to-slab composite connections in commercial and industrial buildings.
Diameter
13–25mm
Length
50–150mm
Standard
ISO 13918
Long-Shank Series

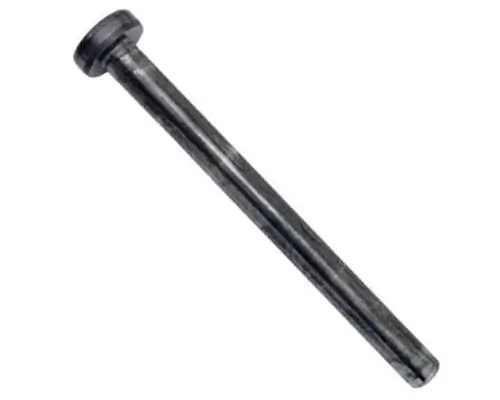

Long Welded Shear Studs
Extended shank shear studs for deep composite decks, bridge girders and steel-concrete beams where the connector must clear a thick profiled deck sheet before reaching the concrete core.
Diameter
19–25mm
Length
up to 300mm
Standard
AWS D1.1
Corrosion-Resistant
Stainless Steel Shear Studs

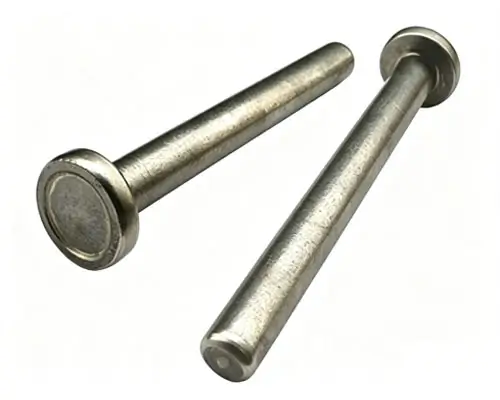

304 / 316 stainless shear connectors for marine platforms, desalination structures and coastal bridge decks, where standard carbon steel shear studs would corrode under salt exposure.
Grade
304 / 316
Diameter
13–22mm
Standard
ISO / ASTM

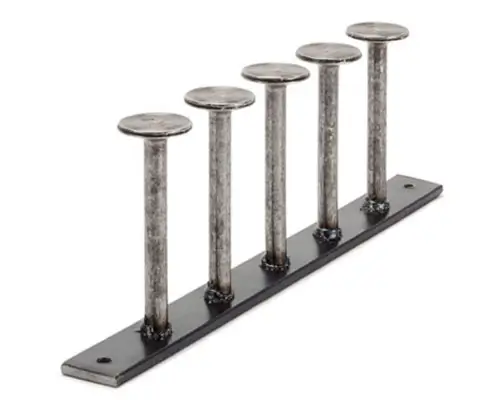

Made-to-Drawing
Custom Shear Studs
Non-standard head geometry, shank length or base diameter, produced from your drawing or an existing sample — including small-batch runs for retrofit and repair projects.
MOQ
Project-based
Lead time
7–15 days
Standard
Client spec
Not sure which shear stud series fits your project? Send us your drawing or slab detail
and our engineers will confirm the right type within 24 hours.
Technical Data
Shear Stud Dimensions, Tolerances & Standards
Every shear stud supplied by ZOC Machinery is manufactured according to ISO 13918 dimensional requirements, ensuring accurate dimensions, reliable quality, and consistent performance in steel structures and composite construction applications. Each batch can be provided with quality documentation and inspection records to help engineers specify with confidence and ensure reliable installation on site.
| Nominal Size | Shank Diameter (mm) | Head Diameter (mm) | Head Thickness (mm) | Standard Length (mm) | Material Grade |
|---|---|---|---|---|---|
| M13 | 12.7 ± 0.3 | 22.2 | 7.9 | 50 / 65 / 75 | ML15 / AISI 1015 |
| M16 | 15.9 ± 0.3 | 25.4 | 8.0 | 50 / 75 / 100 / 125 | ML15 / AISI 1015 |
| M19 | 19.1 ± 0.3 | 31.8 | 10.0 | 75 / 100 / 125 / 150 | ML15 / AISI 1015 |
| M22 | 22.2 ± 0.3 | 35.0 | 10.0 | 100 / 125 / 150 / 175 | ML15 / AISI 1015 |
| M25 | 25.0 ± 0.3 | 38.1 | 12.0 | 100 / 125 / 150 / 200 | ML15 / AISI 1015 |
| M30 | 30.0 ± 0.4 | 45.0 | 12.0 | 125 / 150 / 175 / 200 | ML15 / AISI 1015 |
Note: Lengths shown are pre-weld dimensions. A typical weld burn-off of approximately 2–3 mm applies depending on stud diameter and welding conditions. Custom diameters and lengths outside the standard range are available upon request — see the Selection Guide below.
Need the full dimensional datasheet or a Material Test Report sample?
Download the spec sheet or request one for your project.
Selection Guide
Which Shear Stud Size Do You Need?
Most composite steel structures are built around three shear stud diameters. Match your slab thickness and design shear load to the right size below — or send us your structural drawing for a free custom shear stud recommendation.
M16 Shear Stud
LIGHT & MID-RISE STEEL STRUCTURES
The economical choice for warehouses, workshops and low-rise commercial frames where design shear loads are moderate and deck thickness is standard.
Shank dia.
15.9mm
Typical length
75–100mm
Shear capacity
~70 kN
M19 Shear Stud
COMMERCIAL & INDUSTRIAL STEEL FRAMES
The default shear connector on multi-storey composite beams and mid-span industrial buildings — the balance point of weld speed, material cost and load capacity our clients order most.
Shank dia.
19.0mm
Typical length
100–125mm
Shear capacity
~100 kN
M22 Shear Stud
HEAVY-DUTY & BRIDGE STRUCTURES
Specified where design shear force is high — bridge decks, heavy crane runways and long-span composite girders that need fewer, stronger connection points.
Shank dia.
22.2mm
Typical length
125–150mm
Shear capacity
~135 kN
Outside these three sizes? We also forge custom shear studs to non-standard diameter, length or head geometry — just share your structural drawing or an existing sample.
Still unsure which shear stud fits your load case? Send your slab detail and we’ll confirm the spec for free.
Industry Applications
Where Our Shear Studs Go to Work
From steel structure shear studs on commercial frames to bridge shear studs rated for decades of traffic load, our connectors are engineered for the specific demands of each application.

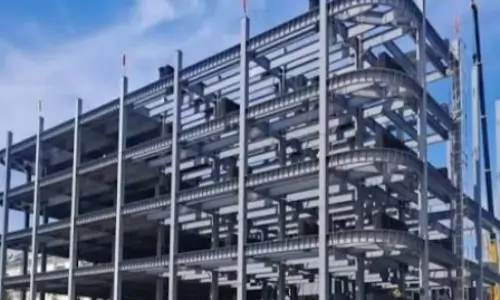

Heavy-duty shear studs engineered for high-strength composite beam connections and profiled steel decking, ensuring maximum shear transfer in commercial buildings.
High-performance shear studs designed to withstand dynamic fatigue loads in concrete-steel composite bridge decks, highway girders, and civil infrastructure.
Corrosion-resistant shear studs tailored for marine structures, hull reinforcements, and offshore platforms requiring full-penetration, high-yield arc welds.
Robust shear studs optimized for heavy-duty warehouse flooring, logistics center composite slabs, and high-traffic mezzanine decking subject to continuous forklift loads.
Why Choose Our Shear Studs
Built for High Quality, Durable Shear Connectors
Consistent weld collars, tight dimensional tolerance and traceable material — the details that separate high quality shear studs from generic stock.
01
Consistent Weld Collar
Precision flux tipping and controlled forging give every shear stud a uniform weld collar, so your crew gets a reliable full-strength fusion on every shot.
02
Tight Dimensional Tolerance
CNC-controlled shank diameter and head geometry within ISO 13918 tolerance, so studs feed and weld consistently through automatic stud welding guns.
03
Durable Low-Carbon Steel
Cold-forged from low-carbon ML15 / AISI 1015 wire rod for the ductility and weldability that durable shear connectors need under cyclic structural load.
04
Full Material Traceability
Every batch ships with a mill test report tracing chemical composition and mechanical properties back to the raw material heat number.
05
Factory-Direct Pricing
No trading middleman markup — you buy shear studs at factory price with guaranteed production timelines and open cost visibility.
06
7-Day Standard Lead Time
In-house cold heading, threading and flux-tipping lines keep standard shear stud orders moving to shipment in as little as 7 days.
Production Process
Inside Our Shear Studs Factory in China
Five in-house production stages turn wire rod into a finished, flux-tipped shear stud — with no outsourced steps and no subcontracted quality risk.
Step 01

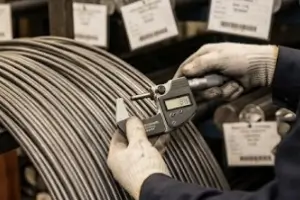

Raw Material Intake & Testing
Premium low-carbon steel wire rods undergo strict chemical analysis and tensile strength testing before entering the production line.
Step 02

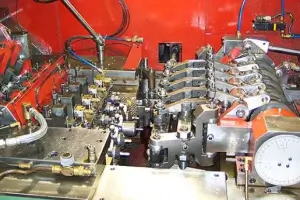

Multi-Station Cold Heading
High-speed multi-station cold forged machines form the shank, weld tip, and solid head in a single continuous process within tight tolerances.
Step 03

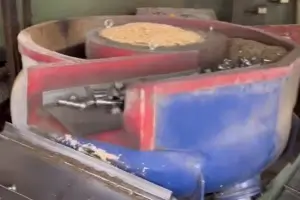

Degreasing & Surface Cleaning
Thorough degreasing removes all drawing lubricants and surface oil, guaranteeing clean metal surfaces for pore-free, full-strength welds.
Step 04
Fully Automated Flux Tipping

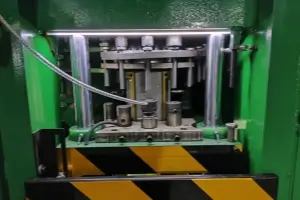

Powered by precision automated flux ball pressing machines — ensuring 100% consistent aluminum tip depth, zero missing flux, and significantly reduced production lead times.
Step 05
Dimensional Inspection & Export Packing
100% dimensional checks and bend testing, followed by moisture-proof, export-ready packaging paired with high-quality ceramic ferrules.
Quality Control
ASTM and ISO Certified Shear Studs, Verified in Four Steps
Every production run of ISO certified studs passes through chemical, mechanical, dimensional and visual checks before it’s cleared for packing — so what leaves our factory matches what’s on the mill test report.
Chemical Composition
Spectrometer analysis of every incoming wire rod batch against ASTM A29 / ML15 chemistry limits.

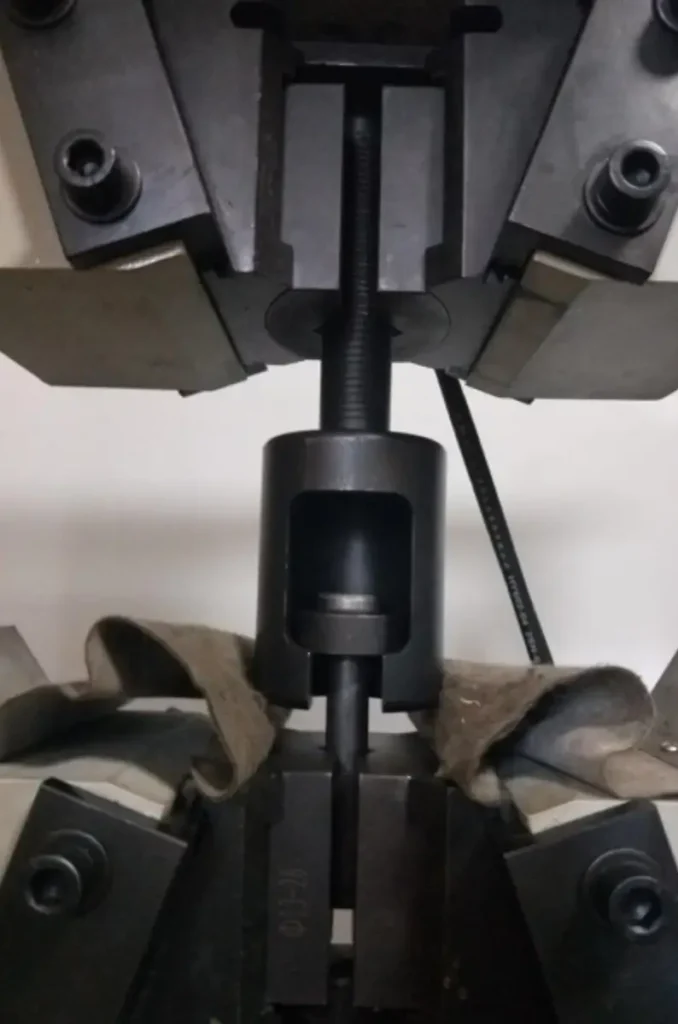

Tensile & Bend Test
Sample studs are pulled to failure and bend-tested to confirm ductility and weld-collar strength.
Dimensional Inspection
Shank diameter, head diameter and overall length are gauge-checked against ISO 13918 tolerance.

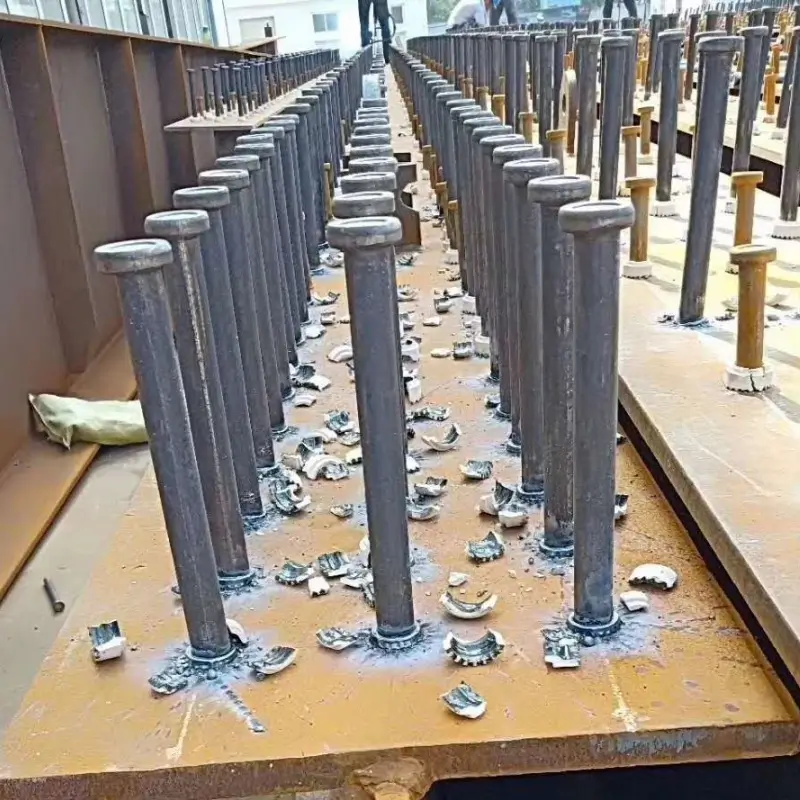

Visual & Weld Test
A trial weld on sample plate confirms flux performance and weld collar consistency before shipment.
Welding Compatibility
Which Shear Stud Welding Machine Does This Fit?
Our shear studs are manufactured to meet the dimensional requirements of standard drawn arc stud welding systems, ensuring reliable installation with commonly used welding equipment in steel structure and composite construction projects. ZOC Machinery also provides compatible stud welding solutions to support complete shear connection applications from stud supply to installation.

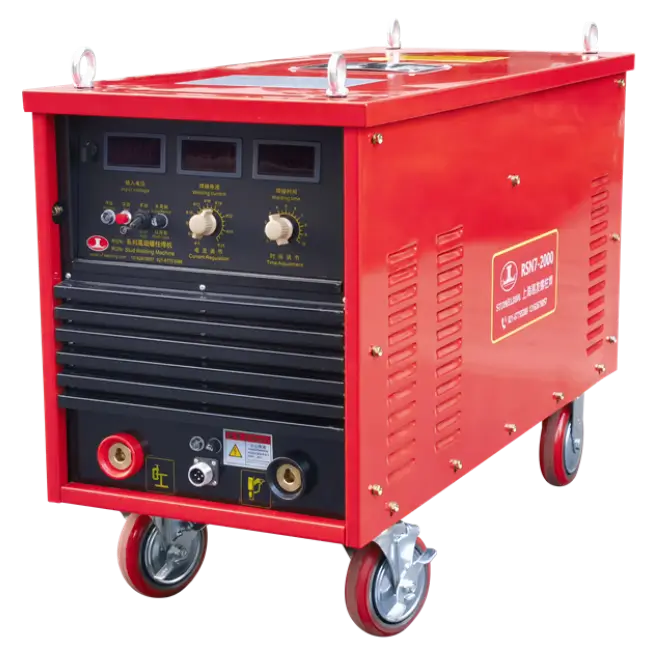

Drawn-Arc Stud Welders
Our M13–M25 shear studs are flux-tipped specifically for drawn-arc welding, the standard process for structural shear connectors.
M13–M25 Flux-Tipped

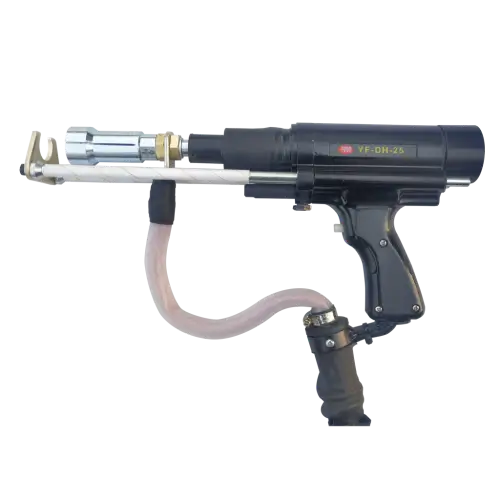

Portable Stud Welding Guns
Standard shank tolerances feed cleanly through handheld gun chucks for on-site beam welding, no adaptor required.
Site-Ready Standard Chuck
Custom Welding Solutions
ZOC Machinery helps you select the right shear studs, welding process, and accessories based on your project requirements and application needs.
Custom Sizes Technical Support
| Shear Stud Size | Diameter (mm) | Standard Lengths (mm) | Recommended Weld Current (A) | Weld Time (sec) | Compatible Process | Recommended Ferrule Size | Typical Applications |
|---|---|---|---|---|---|---|---|
| M13 | 12.7 | 50–75 | 800–1000 | 0.8–1.0 | Drawn Arc Stud Welding | M13 Ferrule | Composite beams, steel structures |
| M16 | 15.9 | 50–125 | 1000–1300 | 0.9–1.2 | Drawn Arc Stud Welding | M16 Ferrule | Steel decking, composite slabs |
| M19 | 19.1 | 75–150 | 1300–1600 | 1.0–1.3 | Drawn Arc Stud Welding | M19 Ferrule | Bridges, heavy steel structures |
| M22 | 22.2 | 100–175 | 1600–1900 | 1.2–1.5 | Drawn Arc Stud Welding | M22 Ferrule | Infrastructure projects |
| M25 | 25.0 | 100–200 | 1800–2200 | 1.5–1.8 | Drawn Arc Stud Welding | M25 Ferrule | Heavy load composite construction |
Engineering Applications
Shear Studs for Construction Projects Around the World
From port terminals to multi-storey steel frames, these are real deployments of our shear studs across the markets we serve.

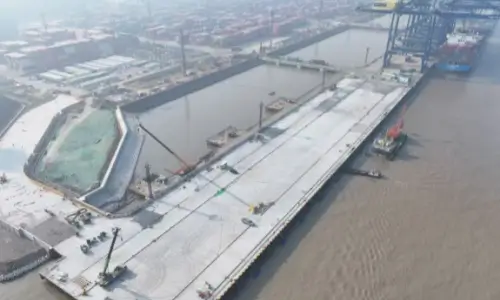

West Africa · Port Terminal
Port Authority Cargo Terminal
120,000+ M19 shear studs supplied for the composite deck of a new cargo handling terminal, welded on-site under coastal humidity conditions.
Stud size
M19
Volume
120,000+ pcs
Lead time
21 days
Middle East · Commercial Tower
Bonded Warehouse Steel Frame
Certified shear studs shipped to a Gulf bonded warehouse project, selected for their tested performance in high ambient temperature.
Stud size
M22
Volume
85,000 pcs
Lead time
14 days

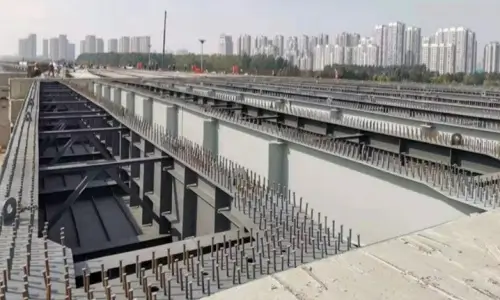

Southeast Asia · Highway Bridge
Composite Girder Bridge Deck
Long-shank shear studs supplied for a highway bridge composite girder deck, with technical support coordinated over WhatsApp throughout installation.
Stud size
M22, 200mm
Volume
60,000 pcs
Lead time
18 days
Have a construction project that needs shear studs at scale? Share your bill of quantities for a project-level quote.
Global Delivery
Packaging Built for a Shear Studs Exporter
Moisture-proof, load-tested packaging and door-to-door logistics support — because a shear stud that arrives rusted or short-counted is a wasted shipment for both of us.
Moisture-Proof Cartons
VCI paper lining and sealed cartons protect against corrosion during ocean freight.
Fumigated Wooden Pallets
ISPM-15 compliant pallets stacked and strapped for safe container loading.
Full & LCL Container Loading
FCL for bulk project orders, LCL consolidation available for smaller trial orders.
Tracked Global Logistics
Sea, air and express options with shipment tracking shared through to bonded warehouse or site delivery.
7 Days
Standard Production Time
Sea / Air
Shipping Methods Available
60+
Countries Regularly Exported To
48H
Global Spare Parts Support
Quick Answer
Frequently Asked Questions About Shear Studs
Shear studs are critical structural components used to create strong mechanical connections between steel beams and concrete slabs. Below are common questions about shear studs, including their applications, welding process, specifications, compatibility, and selection considerations. This guide helps engineers, contractors, and distributors better understand shear connector studs for steel structure construction and composite building projects.
Shear studs, also known as shear connector studs or headed studs, are used to connect steel structures with concrete slabs by transferring shear forces between the two materials. They are widely applied in composite floors, steel bridges, industrial buildings, and infrastructure projects to improve structural strength and stability.
Shear studs are specially designed for structural load transfer between steel and concrete, while general weld studs are mainly used for fastening and attachment purposes. Shear studs usually feature a welded head that provides better anchorage inside concrete, making them ideal for composite construction applications.
Shear studs are commonly installed using the drawn arc stud welding process, where a stud welding machine creates an arc between the stud and the base metal before pressing the stud into the molten weld pool. This process forms a strong metallurgical bond between the shear stud and the steel surface.
Shear studs are available in various diameters and lengths to meet different structural requirements. Common shear connector stud sizes include diameters from 10 mm to 25 mm, with customized dimensions available according to project specifications, welding standards, and load requirements.
Drawn arc stud welding machines are the most commonly used equipment for shear stud welding because they provide stable welding current and sufficient power for large-diameter studs. The suitable machine model depends on shear stud diameter, welding capacity, project scale, and required welding standards.
A reliable shear stud supplier should provide consistent product quality, accurate dimensions, suitable material grades, and compliance with international standards such as ISO 13918. Buyers should also consider the supplier’s manufacturing capability, quality control system, technical support, and experience in serving global construction projects.
