YF-DH-16A Short Cycle Arc Stud Welding Gun (Φ3-12mm)
The YF-DH-16A is a professional short cycle manual gun optimized for Φ3-12mm studs. Its balanced 1.3kg lightweight build and precision spindle ensure maximum efficiency and ease of use in demanding industrial projects.
Description / Features
- Welding Range: Φ3-12mm studs and shear connectors.
- Short Cycle: High-speed welding with minimal distortion.
- Lightweight: 1.3kg body for comfortable long-shift use.
- Positioning: Linear bearing spindle for high precision.
- Protection: Stable arc with porcelain ring protection.
- Application: Steel structures, bridge, and shipbuilding.
Φ3 - 12mm
Welding Range
1.3kg
Gun Weight
Short Cycle
Welding Mode
Technical information
| Parameter | Specification |
|---|---|
| Type | Short Cycle Stud Welding Gun |
| Welding Range | Φ3-12 mm |
| Welding Mode | Arc Type |
| Protection | Porcelain Ring |
| Net Weight | 1.3 kg |
| Shortest Stud | 10 mm |
| Cable Configuration | 2 m High-Toughness Cable (Extendable) |
| Housing Material | High-Temperature Insulation Engineering Plastics |
Applicable Stud Welders

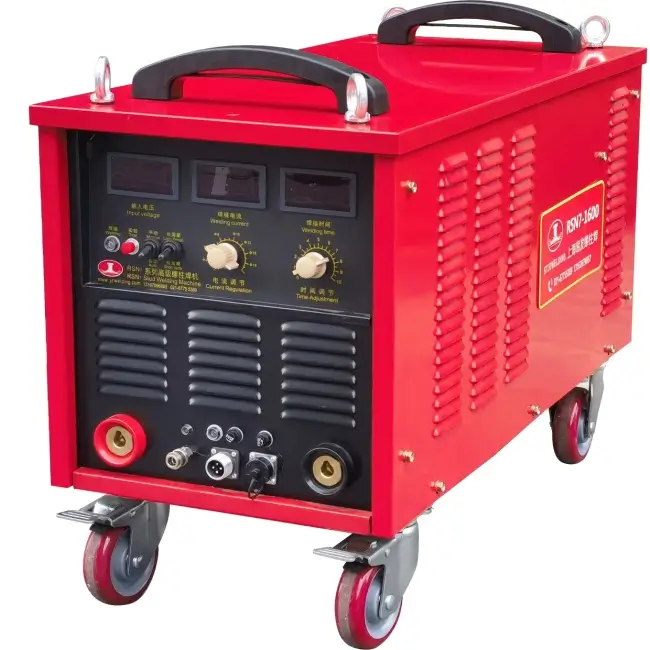

RSN7-1600
Φ3mm-Φ20mm
RSN7-1600G
Φ3mm-Φ20mm
RSM-1600
Φ3mm-Φ22mm

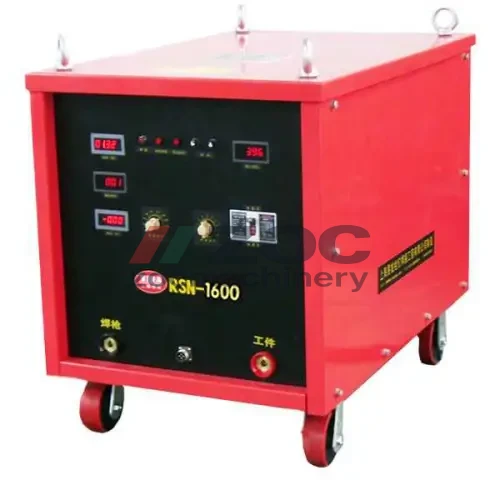

RSN-1600
Φ4mm-Φ20mm
