A stud welder works by using a controlled electric arc to melt the end of a metal fastener and a localized area of a base material before joining them under pressure. Many construction projects struggle with traditional fastening methods that require drilling holes, which often weakens the structural integrity of the metal. If a connection fails due to poor bolting or vibration, the resulting repair costs and downtime can be devastating for your bottom line. Implementing a modern solution provides a high-speed, full-surface metallurgical bond that streamlines your workflow while ensuring every attachment meets rigorous industrial standards.
What is a stud welder and why use it?
A stud welder is a specialized industrial tool designed to join a metal fastener to a base plate without requiring holes or additional hardware. This equipment is essential for manufacturers who need to maintain the strength and leak-proof nature of their metal structures.
How does it improve fastening efficiency?
By using this technology, you can attach fasteners in a fraction of a second, which significantly accelerates your production timeline. The process eliminates the need for time-consuming steps like drilling, tapping, or through-bolting.
- Rapid attachment speed.
- Reduced material preparation.
- Lower labor requirements.
- No hole-drilling required.
Here is the kicker: the speed of this process does not come at the expense of quality. You will find that the automated cycle ensures consistent results across thousands of welds.
Why is structural integrity better with this tool?
Because the process creates a full-surface bond, the joint becomes an integral part of the workpiece rather than a separate mechanical attachment. This prevents leak paths and maintains the full cross-sectional strength of your base metal.
- Leak-proof connections.
- Higher torque resistance.
- Superior vibration damping.
- Aesthetic backside finish.
The best part: you avoid the stress concentrations typically caused by drilling holes in structural steel.
Key Takeaway: A stud welder provides a superior fastening method that combines rapid execution with unmatched structural reliability.
Stud welding offers significant advantages over traditional mechanical fastening by creating a permanent molecular fusion.
| Feature | Stud Welding | Traditional Bolting |
|---|---|---|
| Installation Speed | Under 1 second | 2-5 minutes |
| Structural Bond | Full-surface fusion | Mechanical tension |
| Rear Side Marking | Minimal to none | Visible hole/bolt |
| Labor Cost | Low per unit | High per unit |
This data confirms that fusion-based fastening is the most efficient choice for high-volume metal assembly projects.
How does a stud welder create a fusion bond?
The process by which a stud welder creates a bond involves the initiation of a high-intensity electric arc that generates localized heat. This heat melts both the end of the fastener and the surface of the workpiece simultaneously.
What is the drawn arc welding process?
The machine initiates the cycle by passing a pilot current through the stud while it is in contact with your metal plate. It then lifts the stud to create a high-intensity arc that forms a molten pool.
- Pilot arc initiation.
- Main arc duration.
- Molten pool formation.
- Controlled plunge motion.
Think about it: the entire metallurgical change happens in less than a second. You don’t need to worry about complex settings once the machine is calibrated for your material thickness.
How do heat and pressure complete the joint?
After the precise duration of heating, the machine’s internal spring plunges the stud into the molten pool to forge the bond. The metal then solidifies almost instantly, creating a permanent connection that is physically stronger than the stud itself.
- Instant solidification.
- Homogeneous metal mix.
- Forged bond strength.
- Precise depth control.
Here is the deal: the resulting joint is completely sealed against air and water. You will achieve a clean, uniform weld collar that looks professional and performs reliably.
Key Takeaway: The fusion bond is created through a precisely timed sequence of electrical arcing and mechanical plunging.
Understanding the fusion cycle is critical for optimizing your equipment settings to achieve maximum joint strength.
| Process Stage | Action Taken | Resulting Effect |
|---|---|---|
| Initiation | Contact & Lift | Electric arc creation |
| Heating | Sustained Current | Molten metal pool |
| Plunging | Forced Insertion | Molecular fusion |
| Cooling | Solidification | Permanent bond |
Each stage of the fusion cycle must be perfectly timed to ensure the structural properties of the joint remain consistent.

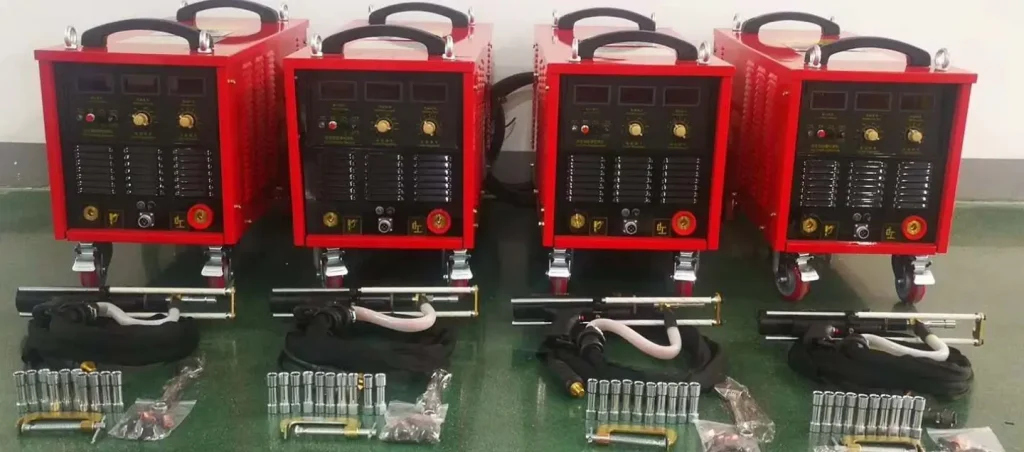

Which type of stud welder fits your project?
Choosing the correct stud welder depends largely on the thickness of your base material and whether you are working in a shop or on a job site. Different technologies, such as drawn arc or capacitor discharge, offer unique benefits for specific applications.
When should you choose a portable unit?
Portable units are essential for fieldwork where you need to move your equipment across large structures like bridge decks or high-rise frames. These machines are designed for rugged durability while providing the mobility your crew needs to stay productive.
- Easy transportability.
- Rugged outer casing.
- Site power compatibility.
- Ergonomic handle design.
Believe it or not, these compact machines can deliver the same power as many stationary units. You will find them indispensable for on-site repairs and structural steel installations.
Why are stationary machines best for shops?
In a high-volume manufacturing environment, stationary systems offer the duty cycle and power consistency required for continuous operation. You can often integrate these machines into automated CNC lines to handle thousands of welds per shift with zero fatigue.
- High duty cycles.
- Automated feeding options.
- Stable power delivery.
- Integration with CNC systems.
The best part: stationary units often feature more advanced cooling systems. You can run these machines all day without the risk of overheating during intense production runs.
Key Takeaway: Matching the machine type to your specific working environment is the first step toward achieving maximum project ROI.
Selecting the right equipment platform ensures that your team can handle the specific workload and material demands of your industry.
| Machine Type | Best Application | Primary Advantage |
|---|---|---|
| Portable Inverter | Construction Sites | Extreme mobility |
| Transformer Rectifier | Heavy Industrial | High power output |
| CNC Automated | Mass Production | Speed and precision |
| Capacitor Discharge | Thin Sheet Metal | No heat distortion |
Matching the technology to the application prevents equipment strain and ensures the highest quality results for your clients.
What parts make up a modern stud welder?
A modern stud welder consists of a sophisticated power source, specialized cabling, and a welding gun that handles the mechanical lift and plunge. Each of these components must work in perfect synchronization to produce a repeatable, high-quality bond.
How does the power source control the arc?
The power source acts as the brain of the system, regulating the exact amount of current and timing for every individual weld cycle. Modern inverters allow you to fine-tune these parameters with digital precision to ensure arc stability.
- Digital microprocessors.
- Current regulation.
- Timing controllers.
- Overload protection.
Here is the thing: the precision of the timing is measured in milliseconds. You rely on this accuracy to prevent burn-through on thinner materials while ensuring deep penetration on heavy plates.

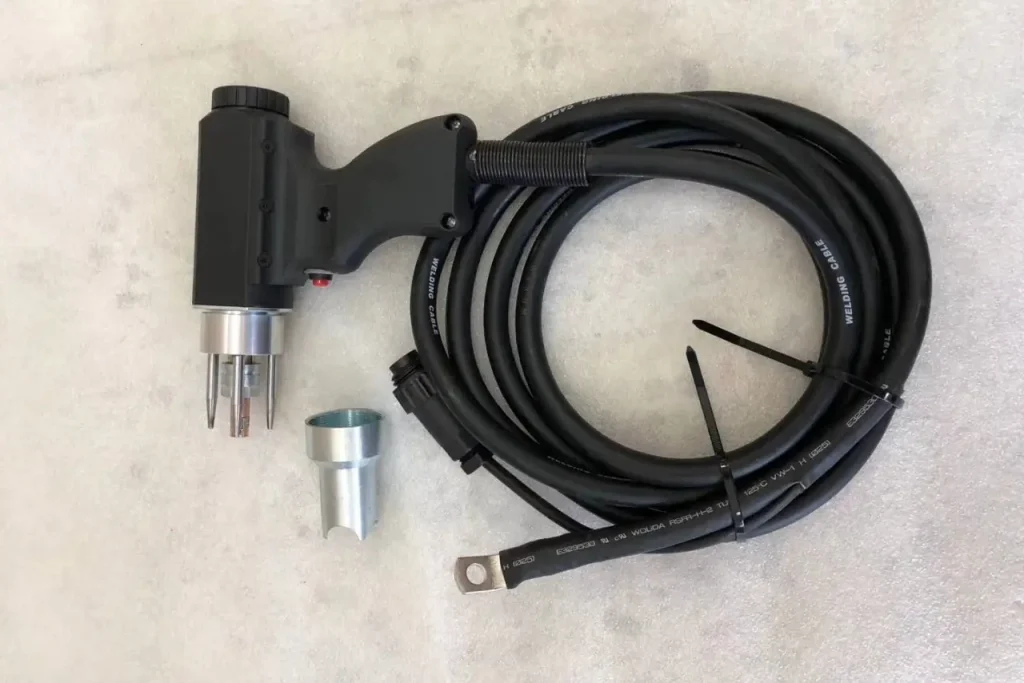

What is the role of the stud welding gun?
The gun is the primary interface you use to position the fastener and initiate the automated welding sequence. It houses the solenoid that lifts the stud and the internal spring that plunges it into the molten pool.
- Adjustable lift settings.
- Interchangeable chucks.
- Heavy-duty cabling.
- Ergonomic trigger.
Think about it: the gun must be robust enough to withstand heat and mechanical shock. You will appreciate a well-balanced gun design during long shifts involving hundreds of fastener attachments.
Key Takeaway: A high-quality system relies on the synergy between the digital power source and the mechanical precision of the welding gun.
Investing in a system with high-grade components reduces your maintenance costs and improves the overall lifespan of the equipment.
| Component | Function | Maintenance Need |
|---|---|---|
| Power Inverter | Supplies Current | Dust removal |
| Welding Gun | Holds/Lifts Stud | Spring inspection |
| Ground Cable | Completes Circuit | Tighten clamps |
| Stud Chuck | Grips Fastener | Clean splatter |
A well-maintained component chain is the secret to achieving zero-defect production in any metal fabrication environment.
How do you maintain a stud welder for quality?
Maintaining your stud welder involves regular inspections of the electrical contacts and mechanical moving parts to prevent arc instability. Consistent care ensures that your machine performs at its peak capacity throughout its operational life.
Why is regular cleaning of the chuck vital?
A dirty or worn chuck can lead to poor electrical contact, which causes internal arcing and weakens the resulting weld. You should inspect the chuck daily and remove any metal splatter to ensure the current flows smoothly into your fasteners.
- Prevent internal arcing.
- Ensure stable current.
- Extend component life.
- Maintain weld consistency.
It gets better: keeping the chuck clean also prevents the stud from sticking during the plunge. You will find that a few seconds of cleaning every morning saves you from hours of troubleshooting later in the day.
How do you check for cable and connection wear?
The heavy-duty cables are subject to constant movement and abrasion, which can cause internal wire breakage over time. You must check the insulation and the tightness of the connectors to prevent power drops that lead to weak bonds.
- Check insulation integrity.
- Tighten terminal lugs.
- Inspect ground clamps.
- Monitor cable heat.
Here is the kicker: a loose ground connection is the most common cause of “cold” welds. You can avoid project delays by ensuring every electrical junction is tight and free of oxidation.
Key Takeaway: Proactive maintenance is the only way to guarantee consistent weld quality and operator safety on the job site.
By following a structured maintenance schedule, you minimize the risk of unexpected equipment failures during critical project phases.
| Maintenance Task | Frequency | Expected Result |
|---|---|---|
| Chuck Cleaning | Daily | Stable arc path |
| Filter Cleaning | Monthly | System cooling |
| Cable Inspection | Weekly | Operator safety |
| Spring Testing | Quarterly | Consistent plunge |
Routine care directly correlates with the long-term reliability and accuracy of your structural fastening system.
Is operating a stud welder safe for users?
Operating a stud welder is safe as long as you adhere to standard industrial safety protocols and wear the appropriate personal protective equipment. The process generates intense light and sparks that require specific shielding for the operator and bystanders.
What PPE is required for safe operation?
While the process is extremely fast, the arc produces UV light that can cause “arc eye” if you do not wear a proper welding helmet. You must also wear flame-resistant clothing and leather gloves to protect your skin from flying sparks.
- Auto-darkening helmet.
- Flame-retardant jacket.
- Leather welding gloves.
- Safety steel-toe boots.
The best part: modern machines include safety interlocks that prevent the gun from firing unless it is properly grounded. You are protected from accidental discharges that could cause injury or damage to the workpiece.
How do you manage fumes and electrical risks?
Welding on plated or oily surfaces can release harmful vapors that you must manage through proper ventilation or extraction. Additionally, ensuring the machine is correctly grounded prevents electrical feedback through the building’s structural frame.
- Fume extraction units.
- Proper area ventilation.
- Grounding rod usage.
- Circuit breaker checks.
Think about it: a safe workspace is a productive workspace. You will find that providing your team with the right safety gear improves their confidence and the overall quality of their work.
Key Takeaway: Prioritizing operator safety through PPE and proper environment setup is essential for a professional welding operation.
Safety is not just a requirement; it is a fundamental part of an efficient and successful fabrication business.
| Safety Category | Equipment Needed | Risk Mitigated |
|---|---|---|
| Eye Protection | Shade 10+ Lens | Arc eye/Flash |
| Skin Protection | Leather Sleeves | Spark burns |
| Respiratory | Fume Extractor | Toxic vapors |
| Electrical | Grounding Cable | Electric shock |
Implementing these safety measures protects your most valuable asset—your people—while maintaining project continuity.
What are the best practices for a stud welder?
The best results from a stud welder come from meticulous surface preparation and the use of the correct consumables for your specific stud size. Following these professional standards ensures that every fastener achieves the maximum possible bond strength.
How does surface preparation affect the weld?
The quality of your fusion bond depends heavily on the cleanliness of the base material at the point of contact. You should always grind away rust, scale, or paint to reveal shiny metal, which ensures the highest electrical conductivity.
- Remove mill scale.
- Grind away paint.
- Degrease oily spots.
- Dry wet surfaces.
Here is the deal: most weld failures are caused by poor preparation rather than machine faults. You will find that taking an extra few seconds to clean the surface results in a perfect, zero-defect weld every time.
Why is choosing the right accessories important?
Using the correct ceramic ferrule and chuck for your specific stud diameter is critical for containing the molten metal. These accessories help shape the weld fillet and protect you from excessive sparking during the rapid plunge motion.
- Correct ferrule sizing.
- Proper chuck depth.
- High-quality ferrules.
- Matched stud material.
The best part: high-quality ceramic ferrules are designed to vent gases and stabilize the arc. You will achieve a more consistent and aesthetic weld collar by matching your accessories to your fasteners.
Key Takeaway: Following professional best practices in preparation and accessory selection is the most effective way to eliminate rework.
Small adjustments in your preparation workflow lead to massive improvements in the long-term reliability of your joints.
| Step | Action | Benefit |
|---|---|---|
| Clean | Grind to bare metal | Zero contamination |
| Set | Adjust gun lift | Consistent arc |
| Fit | Use fresh ferrule | Perfect weld collar |
| Test | Perform bend test | Quality assurance |
Meticulous attention to detail during the setup phase guarantees that your structural connections will meet or exceed project specifications.
Can a stud welder reduce your project costs?
Using a stud welder can drastically reduce your project costs by lowering labor hours and minimizing material waste. The speed of the process allows a single operator to complete the work of an entire crew using traditional methods.
How does speed translate into labor savings?
Because the machine can complete a cycle in under a second, you can install hundreds of studs per hour with very little physical effort. This rapid pace allows you to hit tight deadlines without the need for expensive overtime or large teams.
- Faster project turnover.
- Lower man-hour costs.
- Reduced overhead.
- Minimal training time.
Here is the kicker: you don’t need highly skilled manual welders for this process. You can train a general laborer to produce high-quality results very quickly, which further reduces your personnel costs.
Why is material waste lower with this method?
Traditional fastening methods often involve scrap from drilling or the use of expensive multi-part bolts and washers. Stud welding uses a single-piece fastener and requires no secondary materials, which keeps your procurement and logistics costs lean.
- No scrap from holes.
- Fewer hardware parts.
- Lower shipping weights.
- Reduced storage space.
The best part: the process is so repeatable that you will have almost zero rework costs. You can trust that the first weld will be as strong as the last one in a production run.
Key Takeaway: Lowering both labor and material costs makes this technology the most economically viable choice for modern infrastructure.
Investing in high-speed fastening technology results in significant compounding savings across every project you undertake.
| Cost Factor | Stud Welding | Manual Arc Welding |
|---|---|---|
| Labor Time | 1x | 10x |
| Consumables | Low (Ferrules) | Medium (Rods/Gas) |
| Rework Rate | Very Low | Moderate |
| Total Cost | $$$ | $$$$$ |
The overwhelming efficiency gains found in this process make it the industry standard for cost-conscious metal fabrication.
What new technology powers a modern stud welder?
Modern stud welder technology has evolved to include advanced inverter power supplies and digital monitoring systems that ensure unprecedented levels of precision. These innovations allow you to achieve stable performance even in challenging environments with fluctuating input power.
How does inverter technology change performance?
Modern inverters have replaced heavy, old-fashioned transformers, making the machine lighter and far more energy-efficient for your crew. You get a much smoother arc, which results in less splatter and a more consistent weld penetration across different materials.
- Reduced machine weight.
- Higher energy efficiency.
- Stable arc control.
- Compact footprints.
Wait, there is more: inverter systems can compensate for input voltage drops on long cable runs. This means you get the same high-quality weld at the end of a long lead as you do right next to the power source.
What are the benefits of digital monitoring?
Advanced machines now include data logging capabilities that record the parameters of every single weld performed during a shift. You can provide your clients with a digital quality report, proving that every connection meets the exact project specifications.
- Real-time fault detection.
- Weld count tracking.
- Parameter data logging.
- Remote diagnostics.
Think about it: having a digital record of your production quality builds trust with your customers and reduces your liability. You can verify that every stud was installed with the correct current and timing before the piece even leaves your shop.
Key Takeaway: Leveraging the latest digital and inverter technology gives your business a competitive edge in precision and project documentation.
The shift toward digital control ensures that the “art” of welding is replaced by the “science” of repeatable precision.
| Technology | Feature | User Benefit |
|---|---|---|
| IGBT Inverter | High Frequency | Smooth arc/Lightweight |
| PLC Control | Precise Timing | Repeatable quality |
| Touchscreen | Visual Interface | Easy setup |
| Data Port | Exportable Logs | Quality proof |
Integrating these advanced technologies into your workflow ensures that your production remains at the cutting edge of industrial capability.
Where do you find a reliable stud welder?
Finding a reliable stud welder requires partnering with a manufacturer that provides direct technical support and a proven history of industrial performance. You need equipment that is built to last and a supplier that can provide original spare parts and engineering guidance when you need it.
Why is manufacturer support so critical?
Purchasing from a company that provides direct support ensures that you are never left alone when a technical question arises on the job site. You need a partner who understands the engineering behind the machine and the specific nuances of your application.
- Expert troubleshooting.
- Rapid parts delivery.
- Application guidance.
- Warranty security.
The best part: having access to the manufacturer’s engineers can help you solve complex fastening challenges that generic suppliers simply cannot handle. You will find that this relationship is what keeps your production lines moving without interruption.
How do you verify equipment quality before buying?
Look for machines that comply with international standards like ISO, as these certifications guarantee that the equipment has been tested for safety and reliability. You should also ask for case studies or references from other industrial users in your specific field.
- ISO standard compliance.
- Factory-direct testing.
- Proven field history.
- Transparent pricing.
Here is the deal: a quality machine is an investment in your company’s future. You will find that choosing a reputable brand leads to higher equipment uptime and better overall project profitability.
Key Takeaway: Partnering with an established manufacturer provides the peace of mind and technical backing required for long-term industrial success.
Choosing the right supplier is just as important as choosing the right machine for your operational health.
| Support Factor | Manufacturer | Third-Party Seller |
|---|---|---|
| Technical Depth | High | Low |
| Spare Parts | Original/In-stock | Generic/Ordered |
| Customization | Available | Not available |
| Direct Pricing | Yes | No |
Selecting a dedicated partner ensures that your investment continues to deliver value throughout the entire lifecycle of the equipment.
Our vision is to empower global industry with high-performance welding solutions that eliminate production bottlenecks and drive structural excellence. We stand by the quality and reliability of our equipment to keep your operations running at peak performance. If you are ready to enhance your production capabilities with industry-leading technology, please contact us today for a customized consultation.
FAQ
Can I use a stud welder on galvanized steel surfaces?
No, you should not weld directly through galvanization as it creates a weak, porous bond. You must grind away the coating at the weld point to reveal the bare metal for a proper metallurgical fusion.
What’s the best way to test the quality of my stud welds?
The “bend test” is the most reliable method for verifying weld strength. You strike the welded fastener with a hammer to bend it to a 30-degree angle; a passing weld will show no signs of cracking or failure at the base.
How do I know if my lift settings are correct on the gun?
You can judge this by the appearance of the weld collar. A uniform, shiny fillet indicates correct settings, while excessive splatter or a lopsided collar suggests the lift and plunge timing need adjustment.
How do I know if I need a drawn arc or CD stud welder?
Drawn arc is necessary for larger fasteners and heavy structural plates. Capacitor discharge is better for thin sheet metal where you need to avoid backside marking and heat distortion.
Can I weld different materials together with this machine?Yes, but you must ensure the fastener and base metal are compatible for fusion. Stainless steel studs can often be welded to carbon steel plates, but aluminum requires specific setups and shielding.
