What Counts as a Shear Stud?
When comparing shear studs with other weld studs, start with the joint you need to make. A headed shear stud is itself a weld stud. Its head and shank are specified to connect a steel beam to a concrete slab; a threaded or unthreaded attachment stud may instead hold a bracket, panel, or lining. Similar diameters do not make the two interchangeable.
Buyers comparing shear studs vs. weld studs should check the drawings for stud type, dimensions, material, welding method, and inspection requirements. Those details determine whether the ordered part matches the specified connection.
Headed Shear Connectors
A headed shear connector is a steel stud welded to a beam or girder and embedded in concrete. The shank transfers force between steel and slab, while the head helps resist uplift. Its size, spacing, and strength are set by the structural design.
The head matters because a composite beam must resist both slip along the steel-concrete interface and separation of the slab from the beam.
You will commonly see headed connectors on composite floor beams and bridge girders. They are specified as part of the structural connection, not chosen by appearance alone.
- Transfers shear between slab and beam when specified by the design.
- The head helps restrain slab uplift.
- Can support composite beam action with the required number and layout of connectors.
Other Weld Studs
“Weld stud” is the broader term. It also covers threaded studs, unthreaded pins, insulation pins, and other forms welded to metal. Many serve as mounting points for equipment or linings; some are made for demanding applications. The drawing and product standard determine their permitted use.
A threaded stud can make a practical fixing point for a nut or bracket. Before ordering, check the weld-base diameter, thread size, material, loading, and whether access is needed from only one side.
- Electrical boxes and cable supports.
- Pipe and HVAC brackets, subject to load checks.
- Insulation or refractory lining pins.

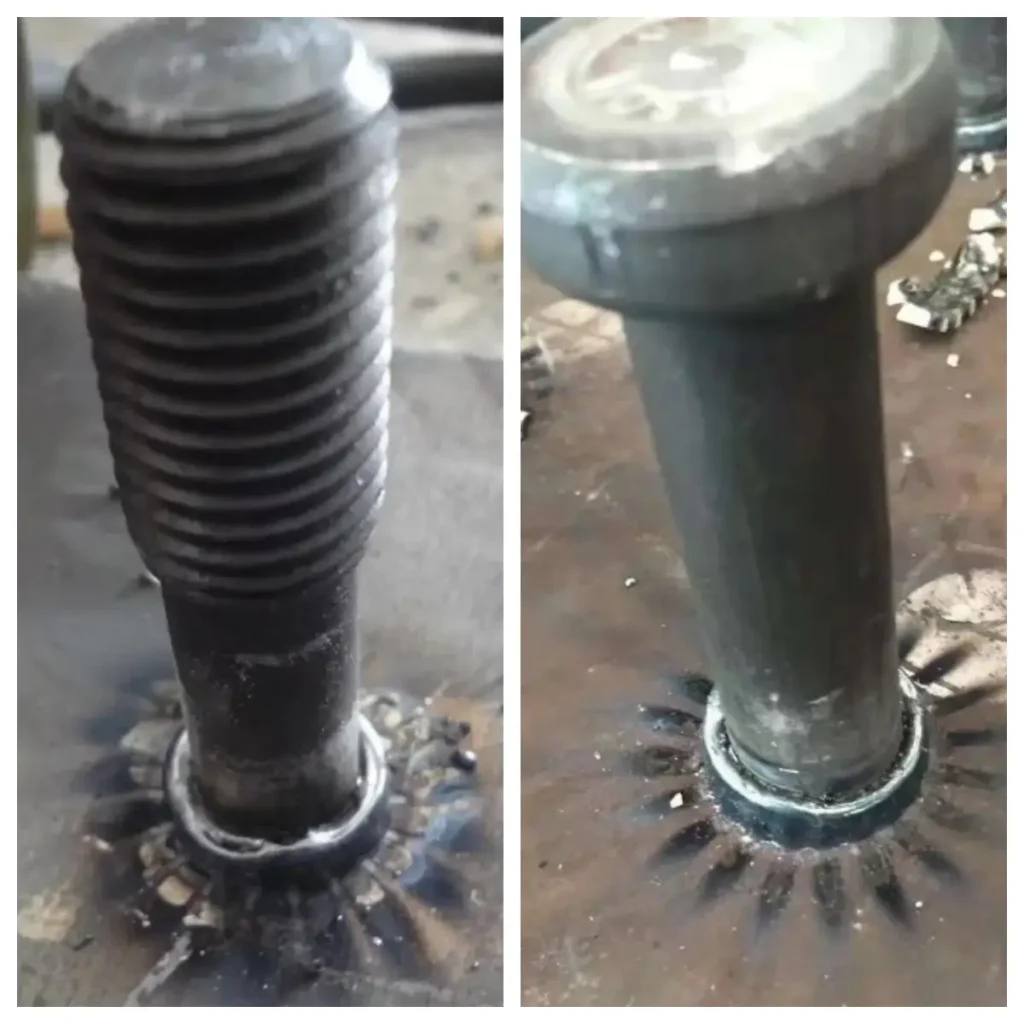

Geometry: Headed Shear Studs and Other Weld Studs
A headed shear stud has a smooth shank and an enlarged head. A regular attachment stud may be fully threaded, partly threaded, or smooth. The relevant difference is what each geometry is designed and qualified to do in the assembly.
If the detail calls for a composite shear connector, do not replace it with a similar-looking threaded stud on the basis of diameter alone. If it calls for an adjustable bracket connection, a headed shear connector may not provide the required fastening detail.
What the Head Does
The enlarged head helps keep the concrete slab from lifting away from the beam as the connection transfers force. It works together with the welded shank, the concrete, and any decking; the head alone does not make the joint sound.
Stud diameter, head size, embedment, concrete strength, deck profile, and spacing all affect the designed connection. Confirm them against the project drawings rather than a generic product photo.
- Head helps resist separation of slab and beam.
- Welded shank transfers force at the steel-concrete interface.
- Stud size and spacing follow the structural design.
Threaded and Smooth Profiles
Attachment studs come in fully threaded, partly threaded, and smooth versions. Threads accept nuts; smooth pins may hold insulation or liners. The stud type must suit both the item being attached and the selected welding process.
A threaded stud is not automatically “non-structural,” and an unthreaded stud is not automatically a shear connector. Use the specified product designation and load criteria.
- Fully threaded studs accept nuts over a wider adjustment range.
- Partly threaded studs leave a smooth section near the weld base.
- Smooth pins suit specified clips or linings.
On a purchase order, list the head, shank, weld-base, and thread dimensions that matter to the joint.
| Design feature | Headed shear stud | Other weld stud |
|---|---|---|
| Shank | Usually smooth | Threaded, partly threaded, or smooth |
| Head | Enlarged head for the specified connector | Varies by attachment design |
| Size | Set by composite connection design | Set by attachment and process |
| Typical use | Steel-concrete shear connection | Nut, bracket, pin, or lining attachment |
The head, weld base, and specified use tell you more than the thread label by itself.
For a composite floor or bridge deck, order the headed connector shown on the engineer’s drawings. For a mechanical attachment, check the load and mounting detail before choosing a threaded or smooth stud.
How the Loads Differ in Steel Construction
In a composite beam, headed shear connectors transfer longitudinal shear between the concrete slab and steel beam. An attachment stud may carry tension, shear, or combined loading from the item fixed to it. Its capacity depends on the stud, weld, base metal, and design; it is not defined by the word “regular.”
The same force directions can occur in different joints, but the design checks are different. Start with the structural load path and the fastener specification.
Shear Transfer in Composite Beams
As a beam bends, steel and concrete tend to slip relative to each other. The headed studs resist that slip so the two materials can act compositely. The designer sets their size and number for the beam, slab, and deck arrangement.
The connection also needs to resist uplift. That is one reason the stud head and its embedment matter, particularly where the slab tends to separate from the steel.
- Transfers longitudinal shear across the interface.
- Helps the slab and beam resist slip as designed.
- Requires the specified stud grade and installation.
Loads on Attachment Studs
A threaded attachment stud often carries force from a bracket, panel, or suspended item. Depending on the detail, that force may include direct tension, shear, and bending. Check the assembly rather than assuming the stud sees tension only.
For an attachment, review the load on the nut or bracket, the stud and weld-base size, the base metal thickness, and the approved installation method.
- Suspended pipe or conduit brackets, if designed for the load.
- Machine guards and access panels.
- Cladding or equipment attachments with suitable weld and base metal.
This table compares the intended load paths; it is not a substitute for a design calculation.
| Design check | Headed shear stud | Attachment weld stud |
|---|---|---|
| Main connection | Steel-concrete shear transfer | Load from attached component |
| Other forces | Uplift and combined effects per design | Tension, shear, or bending per detail |
| Material behavior | Use specified grade and ductility | Use specified grade and capacity |
| Strength value | Calculate under governing design code | Calculate for stud, weld, and base metal |
Neither stud type has a fixed ductility or tensile strength simply because of its shape. Use the specified grade and product data.
Specify the connector for the designed joint. A threaded attachment stud should not replace a composite shear connector without an engineered alternative.
Why Composite Beams Need Shear Connectors
Composite beams need a connection that transfers shear between steel and concrete and restrains uplift. Headed shear studs are a common solution. Without enough suitable connectors, the beam and slab may not achieve the composite behavior assumed in the design.
The number and location of studs depend on the beam, slab, decking, and design code. There is no universal spacing or stud count for every floor.
How Composite Beam Action Works
Concrete carries compression and the steel beam carries tension in a typical sagging composite beam. The shear connectors limit slip so those parts can work together as designed.
Composite action can allow a more efficient beam design, but any reduction in steel size is a design result, not a property that comes automatically with the studs.
- May allow a lighter beam when the designer accounts for composite action.
- Can improve stiffness and deflection performance under the design loads.
- Requires enough qualified connectors in the approved locations.
Why a Threaded Stud Is Not an Automatic Substitute
A conventional threaded attachment stud is not a direct replacement for a specified headed connector. Its geometry, embedment, and qualified resistance may be different, even when its shank diameter matches.
Do not assume that a substitute will pull out or fail in one particular way. Have the designer check the actual connector, concrete, deck profile, and load path before changing the detail.
- The slab and beam may not act compositely as designed.
- Slip and uplift may exceed the design assumptions.
- An unapproved substitution may fail inspection.
The product description must state whether the stud is intended for a designed composite connection.
| Composite floor check | Specified headed connector | Conventional attachment stud |
|---|---|---|
| Concrete embedment | Head and geometry per design | Not an automatic substitute |
| Composite action | Capacity counted in beam design | Requires separate engineered basis |
| Uplift resistance | Checked for the connection | Must be demonstrated if proposed |
| Deck and spacing | Included in design and installation | Requires redesign and approval |
Headed studs provide a documented path to composite design. A different connector needs its own design basis and approval.
Use the specified headed shear connectors unless the structural engineer approves another qualified system.
Standards and Inspection Requirements
A steel construction project may reference AWS D1.1 for structural stud welding, ISO 13918 for stud and ferrule product requirements, and a separate structural design code for connector capacity. These documents cover different questions. Check which editions and acceptance rules the contract actually cites.
Do not assume every attachment stud is exempt from structural requirements, or that every shear stud needs the same paperwork. The project specification controls material records, welding procedure, operator qualification, and inspection.
Check the Applicable Standards
AWS D1.1 addresses structural welding procedures, qualifications, and inspection where it is adopted for the job. ISO 13918 identifies product requirements and dimensions for several stud types, including shear connectors. The structural engineer uses the applicable building or bridge design rules to size the connection.
A product certificate is useful, but it does not by itself prove that a field weld meets the project requirements. Confirm the stud grade, base metal, welding setup, and inspection plan together.
- Confirm the welding procedure and operator requirements.
- Request material records named in the purchase order.
- Check stud grade and dimensions against the specified product standard.
Visual Checks and Bend Tests
Stud weld inspection may include visual examination and bend testing at the stages required by the applicable code or procedure. Do not bend every installed stud unless the inspection plan calls for it. Follow the specified angle, sample frequency, and acceptance criteria.
Record the equipment settings and test results when required. A bent stud that passes a test must still be handled according to the project procedure.
- Inspect weld appearance under the applicable criteria.
- Bend-test the samples required by the procedure.
- Record settings and any corrective action.
Keep product certification, weld qualification, and structural capacity as separate checks.
| Requirement | Headed shear stud project | Other weld stud project |
|---|---|---|
| Product | Specified grade and dimensions; ISO 13918 if cited | Specified grade and dimensions |
| Welding | AWS D1.1 or other adopted procedure | Applicable project welding procedure |
| Records | As required by contract and inspection plan | As required by contract |
| Acceptance | Visual and other specified tests | Tests specified for the attachment |
The code named on a datasheet does not replace the job’s approved drawings and inspection requirements.
Ask for the material and welding documentation named in the purchase order, then verify that the delivered studs match it.
Where Each Stud Type Is Used

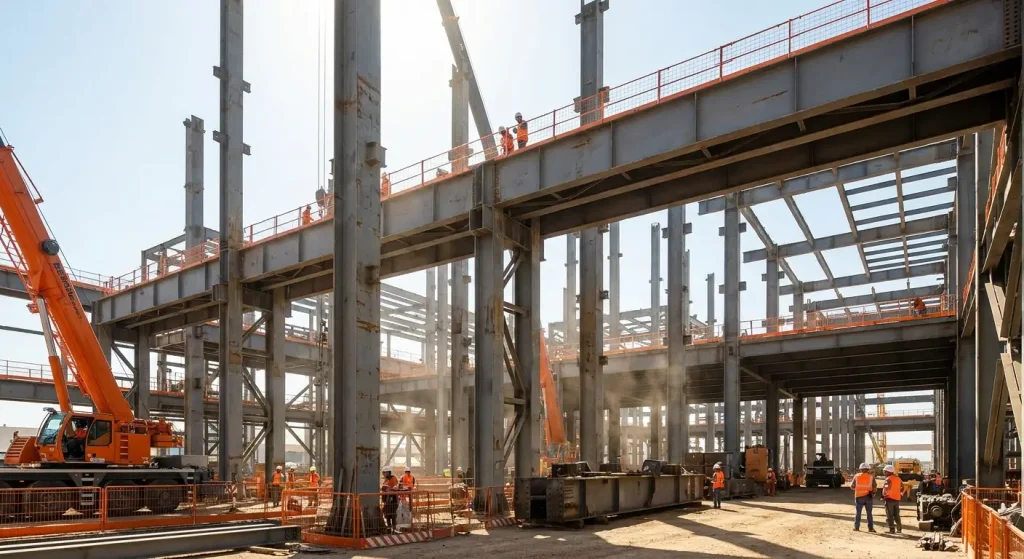

Headed shear studs are commonly welded to beam flanges for composite floors and bridge girders. Attachment studs appear on panels, frames, liners, and other details. The boundary is the design function, not whether the work is done in a shop or on site.
Check the drawing location, access, welding position, base metal condition, and whether the stud is welded through decking before choosing equipment and ferrules.
Composite Floors and Bridges
On a composite floor, connectors may be welded directly to the top flange or through profiled metal decking where the detail allows it. Bridge work has its own design and inspection requirements. Use the connector size and placement shown on the project drawings.
A change in deck profile or stud location can affect the connection. Raise it with the designer instead of treating the layout as a simple field adjustment.
- Steel buildings with composite concrete floors.
- Composite bridge girders and decks.
- Other engineer-designed steel-concrete connections.
Equipment and Utility Attachments
Other weld studs can secure electrical components, insulation, liners, guards, and brackets. Their size and material vary with the load, environment, and base metal.
Even a secondary attachment needs a suitable weld and verified load path. Avoid drilling or welding on a primary member without the required project approval.
- Electrical boxes and conduit supports.
- Insulation blankets and lining systems.
- Protective panels and equipment brackets.
A location may contain both connector and attachment studs, each serving a different detail.
| Application | Headed shear stud | Other weld stud |
|---|---|---|
| Composite floor | Beam-to-slab shear connection | Separate service attachments |
| Bridge deck | Designed girder-deck connection | Conduits or equipment details |
| Industrial facility | Where composite design specifies it | Liners, insulation, or brackets |
| Selection basis | Structural drawings and design code | Attachment loads and drawings |
Confirm the drawing and load before moving an attachment or changing its stud type.
Keep the connection function on the purchase order: composite shear transfer, mechanical attachment, or insulation fixing.
Choose the Welding Process and Equipment
Large structural shear connectors are commonly installed with a drawn arc welder and a matching gun. Small attachment studs on thin sheet may use capacitor discharge (CD) welding. Neither method suits every stud. Match the power source, weld-base size, base metal, position, and procedure before ordering equipment.
A machine with adequate rated output still needs the right gun, leads, ferrule, and settings. Make test welds on the actual material and thickness.
Drawn Arc Systems for Structural Studs
For a headed connector, drawn arc welding lifts the stud, forms an arc, and plunges the stud into the molten pool. Current and time depend on the stud, power source, position, and steel. Use the equipment and stud supplier’s settings as a starting point.
For through-deck welding, confirm that the machine, stud, ferrule, deck coating, and beam detail are compatible. Record the settings and inspect trial welds before production.
- Provides the arc cycle needed for the specified large stud.
- May be used through decking when the system is qualified for it.
- Check duty cycle, cable capacity, and site power.
Capacitor Discharge for Smaller Attachments
Capacitor discharge (CD) welding machines store energy in capacitors and release it in a short weld cycle. They are often used for smaller studs on thinner base metal, where a long arc cycle could cause distortion.
A short cycle can limit visible heat effects, but it does not guarantee an undamaged back surface. Check thickness, coating requirements, and the approved process. These CD welding systems are an option when the stud and joint suit CD welding.
- Short cycle suits many small-stud and thin-sheet applications.
- Check the back surface and coatings on test welds.
- Confirm site power and machine rating before mobilization.
Compare the processes by their intended stud size and base material; the exact machine rating varies by model.
| Process check | Drawn arc for shear connectors | CD for suitable small studs |
|---|---|---|
| Stud size | Per machine and approved procedure | Per machine and stud rating |
| Power | Check current, duty cycle, and site supply | Check stored energy and site supply |
| Base metal | Check flange and decking detail | Check sheet thickness and coating |
| Cycle | Set by stud and equipment procedure | Short discharge per machine design |
For structural shear connectors, follow the specified drawn arc procedure. For small attachments, check whether CD, short-cycle, or drawn arc welding is approved.
Select the method from the joint and qualified process, not from the word “weld stud” on a catalog page.
Ferrules, Flux Tips, and Other Consumables
A headed connector welded by drawn arc commonly uses a matching ceramic ferrule and may use an aluminum flux ball or other deoxidizing tip specified by the stud maker. CD studs use a different tip and process. Buy the stud, ferrule, and accessories as a compatible system.
The consumables affect setup time and purchasing as well as weld quality. Check the stud drawing and machine instructions before assuming every connector needs the same parts.
Ceramic Ferrules
A ceramic ferrule sits around the weld area during many drawn arc stud welds. It helps shield the molten metal and form the collar. Ferrule dimensions must match the stud and the intended welding position.
After welding and cooling, remove the ferrule as the procedure requires and inspect the exposed collar. A cracked, wet, or mismatched ferrule can affect the result.
- Helps shield the molten weld area.
- Shapes the collar around the stud base.
- Must fit the stud and welding position.
Flux Tips and Purchasing Checks
Some headed shear studs have an aluminum deoxidizing ball at the welding end. Check the specified stud design; not every weld stud uses the same tip. Keep the tips and ferrules clean and dry.
When buying in volume, request the required material certificate, stud dimensions, head geometry, tip configuration, and matching ferrule details. Those checks are more useful than a general claim of “certified quality.”
- Match stud material and geometry to the drawing.
- Specify lengths for the deck and slab detail.
- Confirm delivery dates and required documentation.
The stud, ferrule, and tip must fit the approved process; a generic replacement can change the weld result.
| Item | Drawn arc headed connector | CD attachment stud |
|---|---|---|
| Ferrule | Use matching ferrule where specified | Usually not used with tip ignition |
| Stud tip | Use specified flux or deoxidizing tip | Use CD-compatible ignition tip |
| After welding | Remove ferrule and inspect collar | Inspect attachment weld |
| Purchase check | Stud, ferrule, and certificates | Stud, base metal, and machine fit |
Order the ferrule and stud together so their fit can be checked before production.
Do not substitute a different tip or ferrule on a structural job without checking the approved procedure.
Avoid Selection and Installation Mistakes
The purchasing decision starts with the connection detail. Identify whether the stud transfers composite shear, anchors an attachment, or holds insulation. Then check the grade, geometry, welding process, base metal, and inspection requirements. This avoids a last-minute switch between parts that happen to share a diameter.
If you need to compare a headed connector with a threaded or smooth attachment stud, contact us with the drawing, stud size, base material, and planned welding method. We can help you identify the matching stud, ferrule, and machine options for review against your project specification.
Frequently Asked Questions
These answers address common purchasing and installation questions. The project drawings and approved procedure take precedence.
Can I use a threaded weld stud as a shear connector if the diameter matches?
Not as a direct substitution. A composite connector has specified geometry and resistance, including an enlarged head to help resist uplift. Ask the structural designer to approve any alternate connector and its installation method.
What beam flange thickness is needed for a 19 mm shear stud?
There is no safe universal thickness figure for every stud, power source, and through-deck detail. Check the project specification, stud and equipment instructions, and the qualified welding procedure for the actual flange and decking.
How do I know whether the project needs headed shear connectors?
Look for a composite beam or bridge deck detail that calls for shear connection between steel and concrete. The designer will specify the connector type, size, and spacing. A threaded stud for a bracket is a separate connection detail.
Do other weld studs follow the same AWS D1.1 requirements?
It depends on the project and application. AWS D1.1 may govern structural stud welding; ISO 13918 covers product requirements for multiple stud types. Confirm the contract documents rather than assuming that all non-shear studs are exempt.
Can a structural shear stud be welded without a ceramic ferrule?
Use the shielding and stud-welding method approved for the joint. A ceramic ferrule is common for drawn arc shear connectors, but do not assume it is the only possible qualified method. Never omit it from a procedure that specifies it.
