Steel structure stud welding is a specialized arc welding process that fuses a metal fastener to a base component in milliseconds without the need for additional filler material or extensive surface preparation. However, when you are managing large-scale industrial projects, manual fillet welding often becomes a massive bottleneck that drains your budget and slows down site progress. Consequently, if your team cannot keep up with the pace of modern steel erection, you risk project delays. In addition, inconsistent structural bonds could lead to safety failures. Therefore, adopting high-efficiency stud welding for steel structures provides the rapid, code-compliant solution you need to ensure permanent fusion and maximum structural safety.
What defines structural steel stud welding?
Structural steel stud welding is the primary industrial method for joining headed shear connectors or threaded bolts to steel girders using a high-intensity electric arc. As a result, this process allows you to create a high-strength bond. In fact, the bond is actually stronger than the fastener itself because it melts the full diameter of the stud end simultaneously with the base metal.
Is the bond truly permanent?
You can achieve a full-cross-section fusion that eliminates the weaknesses typically associated with manual tack welding or through-bolting. Because the entire base of the stud becomes molten, the resulting joint is completely vibration-resistant and airtight.
Think about this:
- The weld area covers 100% of the stud diameter.
- There is no need for drilling or tapping the beam.
- The process works on various steel grades including stainless.
- It prevents structural “weeping” at connection points.
Here is the deal: when you use the right settings, the stud and the beam become one single piece of metal.
Key Takeaway: Understanding the definition of this process helps you identify it as the superior choice for high-strength composite construction and heavy-duty industrial fastening.
The technical definition centers on full-diameter fusion and high-speed execution.
| Characteristic | Manual Welding | Stud Welding |
|---|---|---|
| Fusion Area | Partial/Fillet | Full Cross-Section |
| Processing Time | Minutes | Milliseconds |
| Base Penetration | Variable | Controlled Depth |
A full-cross-section bond ensures that your structure can withstand extreme shear forces without failure.
Why choose steel construction stud welding now?
Therefore, you should prioritize stud welding for steel structures, as it offers a 5x increase in installation speed compared to traditional manual arc methods. As a result, this improvement directly enhances your project ROI. In addition, this technology allows a single operator to install hundreds of shear studs per hour, which is essential for meeting tight deadlines on bridge decks and high-rise floors.
Can you reduce your labor overhead?
Implementing this automated solution allows you to deploy fewer workers to complete more tasks in a fraction of the time. This reduces your reliance on high-cost specialized labor and minimizes the risks of human error during long shifts.
Look at it this way:
- Output increases from 30 studs to 600+ studs per hour.
- Setup time is minimal with digital inverter gear.
- One operator handles the entire welding sequence.
- Reduced crane time on-site saves thousands in rental fees.
But wait, there’s more; the consistency of the automated cycle ensures every weld meets the same high-quality threshold.
Key Takeaway: Choosing the right welding technology allows you to drastically shorten your construction timeline. Moreover, it helps maintain a lower total cost per joint.
Speed and cost reduction are the primary drivers for modern steel fabrication efficiency.
| Metric | Traditional Fillet | Stud Welding |
|---|---|---|
| Studs per Minute | 0.5 – 1.0 | 15 – 25 |
| Skill Level Required | High | Moderate |
| Total Cost per Weld | High | Low |
Investing in automated equipment is the fastest way to increase your facility’s structural throughput.
How does arc stud welding for structural steel work?
The process of arc stud welding for structural steel relies on the “Drawn Arc” principle, where a power source generates a high-current arc to melt the fastener tip and the base metal. You manage this entire sequence through a specialized gun that precisely controls the timing of the lift, the arc duration, and the final plunge.
What happens during the lift phase?
When you pull the trigger, the gun’s internal solenoid lifts the stud away from the steel surface to initiate the pilot and main arcs. As a result, intense heat is generated, forming a molten pool in both the stud and the structural beam. In addition, this ensures consistent fusion across the entire joint.
In other words:
- The lift height is preset based on the stud diameter.
- A ceramic ferrule contains the heat and molten metal.
- The main arc melts the full face of the fastener.
- Heat remains localized to prevent beam distortion.
This entire sequence happens so quickly that the surrounding steel remains relatively cool to the touch. Consequently, minimal heat affects adjacent components.
Key Takeaway: Mastering the three-stage sequence of contact, lift, and plunge is critical for troubleshooting your on-site welding quality and consistency.This is an essential part of the stud welding process for steel structures.
Precision timing between the machine and the gun is the secret to a perfect structural bond.
| Sequence Step | Action | Duration |
|---|---|---|
| 1. Contact | Stud touches base metal | Initial Start |
| 2. Lift/Arc | Solenoid creates arc gap | 100-1500 ms |
| 3. Plunge | Stud pushed into pool | Milliseconds |
The mechanical timing must be perfectly synchronized with the electrical current for high-quality results.
Which studs suit stud welding for steel structures?
Consequently, selecting the correct fasteners for stud welding for steel structures is essential. This is because the material chemistry and flux ball quality determine the final strength of the joint. For example, you will most commonly use headed shear studs. In fact, these studs are specifically designed to transfer loads between steel beams and concrete slabs in composite construction.
Why is the flux ball necessary?

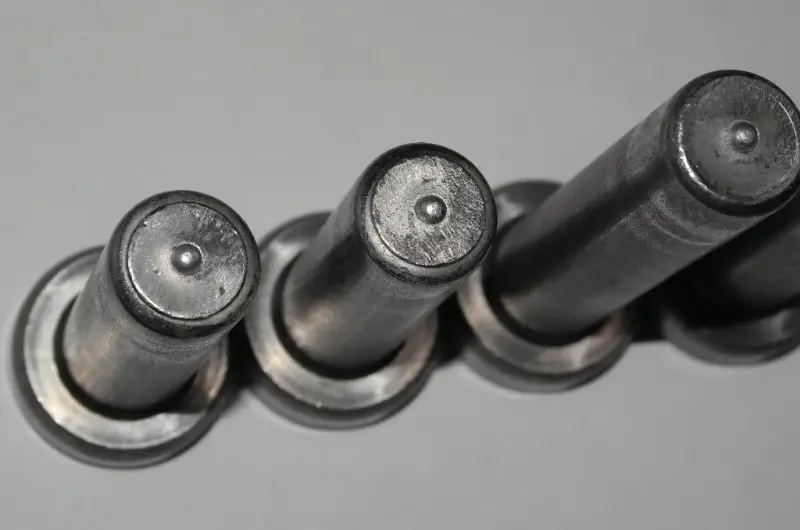

The small aluminum ball at the tip of the stud acts as a deoxidizer that cleans the molten pool and stabilizes the arc. Without high-quality flux, you risk porosity and brittle welds that will fail your structural inspections.
Here is the deal:
- Headed studs resist concrete separation.
- Threaded studs allow for secondary attachments.
- Deformed bar anchors are ideal for pre-cast work.
- Flux balls must be securely riveted to the tip.
Look at it this way; a stud without a proper flux ball is essentially a failed weld waiting to happen.
Key Takeaway: Always match your stud grade to the structural requirements of your specific project to ensure the highest performance and safety.
Using fasteners with consistent flux riveting ensures every arc start is clean and stable.
| Stud Type | Common Use | Load Type |
|---|---|---|
| Headed Shear Stud | Composite floor decks | Shear Transfer |
| Threaded Stud | Pipe & HVAC mounting | Tension |
| Concrete Anchor | Wall panels & inserts | Static Load |
High-quality studs are the foundation of any code-compliant steel structure project.
How to test stud welding for steel structures quality?
Testing the quality of stud welding for steel structures is a mandatory step that involves both visual inspections of the weld collar and mechanical bend tests to prove fusion. You must verify that a full 360-degree “fillet” or collar of metal has formed around the base of every installed fastener.
What does the bend test prove?
You perform a bend test by striking the stud with a hammer or using a pipe to bend it to a 15-to-30-degree angle. If the weld is sound, the stud will bend significantly without any cracking or separation at the fusion line.
But wait, there’s more:
- A full collar indicates proper plunge depth.
- The “ring test” uses sound to detect voids.
- Visual inspection checks for arc blow signs.
- Destructive testing is done on sample pieces.
Think about it; if the stud breaks but the weld stays on the beam, the process was successful.
Key Takeaway: Regular inspection and bend testing are your only guarantees that the structure will meet international safety codes like AWS D1.1.
Visual and mechanical testing provides immediate feedback on your machine settings and operator skill.
| Test Method | Passing Requirement | Failure Sign |
|---|---|---|
| Visual Exam | 360° even weld collar | Partial/Undercut |
| 15° Bend Test | No cracks in weld zone | Separation/Tearing |
| Ring Test | High-pitched metallic ring | Dull/Thud sound |
Rigorous testing ensures that every connection point can handle its intended structural load.
Where is stud welding applications in steel structures found?
The versatility of stud welding for steel structures makes it the standard for infrastructure projects including high-rise office buildings, transport bridges, and industrial power plants. You will find stud welding applications in steel structures used anywhere that a concrete slab must be bonded to a steel frame to act as a single composite unit.
Is it used for bridge girders?
In bridge construction, shear studs are welded to the top flanges of girders before the concrete road surface is poured. This connection allows the bridge to withstand decades of heavy traffic vibration and varying environmental temperatures.
In other words:
- Bridges require thousands of large shear studs.
- Stadiums use studs for tiered seating decks.
- Industrial plants mount piping to steel beams.
- Shipyards use it for deck and bulkhead attachments.
But that is not all; this method is also vital for seismic zones where structural flexibility and strength must be balanced perfectly.
Key Takeaway: The wide application of this technology across diverse sectors proves its reliability for heavy-duty fastening in the modern construction era.
Composite action between steel and concrete is impossible without these reliable welded connectors.
| Application | Primary Goal | Stud Diameter |
|---|---|---|
| High-Rise Deck | Floor stability | 19mm – 22mm |
| Steel Bridge | Vibration resistance | 22mm – 25mm |
| Power Station | Equipment mounting | M6 – M24 |
Infrastructure durability depends on the permanent bonds created through this automated process.
What gear powers stud welding for steel structures?
To power stud welding for steel structures, you need a high-amperage inverter or thyristor machine capable of delivering up to 3150A for large-diameter shear connectors. These units are specifically designed to maintain a stable arc even when you are using long cables on a complex construction site.
Why choose inverter technology?
Modern inverter machines are far more energy-efficient and portable than older transformer models, allowing you to move the equipment easily across different floors of a building. They provide much finer control over the arc timing, which results in cleaner welds with less spatter.
Look at it this way:
- Inverters save 30% to 40% on electricity.
- Digital displays show precise voltage and time.
- Integrated cooling fans extend your duty cycle.
- Voltage compensation handles site power drops.
Think about it; a machine that is easier to move means your team spends more time welding and less time moving gear.
Key Takeaway: Investing in modern inverter equipment ensures that your site stays productive even under harsh environmental conditions and fluctuating power.
The right power source is the heart of a successful structural steel installation.
| Machine Type | Max Diameter | Main Advantage |
|---|---|---|
| Heavy Inverter | 32mm | Precision & Portability |
| Thyristor Unit | 30mm | Extreme Stability |
| Short Cycle | 14mm | Speed for Thin Plates |
Choosing gear with high duty cycles prevents overheating and keeps your production line moving.
What stops stud welding for steel structures errors?
Preventing errors in stud welding for steel structures requires the use of ceramic ferrules to protect the arc and proper grounding to avoid magnetic interference. You can eliminate most field failures by ensuring that your base metal is free of thick rust, heavy scale, or oil before you start the arc.
How do you stop “Arc Blow”?
Arc blow occurs when magnetic fields pull the arc to one side. However, you can prevent this by placing your ground clamps symmetrically around the welding area. In addition, ensuring that the ceramic ferrule is seated flat against the steel also helps contain the arc where it belongs.
Think about this:
- Always use clean, dry ceramic ferrules.
- Double ground clamps prevent magnetic pull.
- Correct lift height prevents “cold” welds.
- Damp ferrules can cause porosity in the pool.
Look at it this way: taking two minutes to clean the steel surface can save you two hours of rework later.
Key Takeaway: Developing a strict setup protocol for your ferrules and grounding is the most effective way to guarantee 100% weld success rates.
Consistency in your preparation is the only way to avoid common structural welding defects.
| Issue | Probable Cause | Correction |
|---|---|---|
| Porosity | Moisture/Rust | Dry ferrules & Grind base |
| One-Sided Weld | Arc Blow | Symmetrical Grounding |
| Shallow Fusion | Low Current | Increase Time/Amps |
Using the correct consumables and grounding techniques eliminates the majority of on-site rework.
Is stud welding for steel structures efficient?
Efficiency is the defining characteristic of stud welding for steel structures because it replaces hours of manual labor with a process that takes only a few seconds per fastener. When you are managing a massive stadium or bridge project, this speed is the only way to stay ahead of the concrete pouring schedule.
How much time can you save?
A single operator using an automated system can replace a team of five manual welders while producing more consistent results. This efficiency allows you to allocate your skilled human resources to other critical areas of the project.
Here is the deal:
- No through-holes mean no structural weakening.
- One-sided access is enough for most jobs.
- Post-weld cleaning is virtually eliminated.
- High-speed equipment handles 20+ studs/min.
But wait, there’s more; using an automated flux fixing machine to prepare your studs in the factory ensures you always have high-quality consumables ready for the field.
Key Takeaway: Maximum efficiency is achieved when you combine high-speed inverter machines with factory-prepared studs that feature high-quality flux balls.
Efficiency in structural construction is measured by both speed and the lack of required rework.
| Method | Access Needed | Speed Metric |
|---|---|---|
| Stud Welding | One Side | Seconds |
| Through-Bolting | Both Sides | Minutes |
| Manual Fillet | One Side | Minutes |
Speed and quality are no longer a trade-off when you use the right automated technology.
How to pick stud welding for steel structures units?
You must choose your stud welding for steel structures unit based on the maximum stud diameter required and the intended mobility of the machine on your job site. For large infrastructure, a heavy-duty inverter with at least 2500A capacity is necessary to handle the 22mm or 25mm shear studs common in bridge girders.
Do you need a dual-gun system?
For instance, if you have a massive floor area to cover, a dual-gun machine allows two operators to work independently from a single power source. As a result, this setup doubles your productivity. Moreover, it saves space on the construction deck and reduces the number of primary power connections required.
In other words:
- Match machine amperage to stud size.
- Check for IP23 protection for site work.
- Evaluate the availability of spare parts.
- Prioritize units with digital parameter memory.
Look at it this way: picking the right machine today prevents a technical nightmare in the middle of a critical project next month.
Key Takeaway: Always consult with a technical expert to select a machine that provides the right balance of power, durability, and after-sales support for your region.
The best equipment choice is one that grows with your project needs and offers reliable technical support.
| Feature | Best For | Requirement |
|---|---|---|
| Dual Gun | High-Volume Decks | 380V – 440V Power |
| Single Inverter | General Fabrication | Portability |
| Submerged Arc | Heavy Manufacturing | Permanent Setup |
Selecting the right industrial gear ensures your investment pays off through years of reliable service.
FAQ: Essential Questions on Steel Stud Welding
Can I weld shear studs through metal decking?
Yes, but you must ensure that the deck is galvanized and that your welding machine has a “through-deck” setting with higher amperage. The arc must burn through the deck and the base metal simultaneously to create a valid composite bond.
What’s the best way to prevent porosity in structural welds?
Definitely, the best way is to keep your ceramic ferrules completely dry and ensure the steel surface is ground clean of heavy rust. Moisture and contaminants are the two leading causes of gas bubbles in the molten weld pool.
How do I know if my machine is set correctly?
Concise judgment: start with a bend test. If the stud bends 30 degrees without any sign of cracking at the base, your current and time settings are perfectly matched for that stud diameter and material.
Can I use a standard arc welder for these studs?
No, a standard arc welder cannot provide the high-current burst and the millisecond timing control required for a drawn arc. You will end up with a weak, surface-level tack that fails under the slightest structural stress.
What’s the best diameter stud for 15mm steel plate?
Generally, the stud diameter should not exceed 2.5 times the plate thickness to avoid warping. For a 15mm plate, a 22mm or 25mm stud is the industry standard for achieving a secure and stable structural connection.
Conclusion: Mastering Structural Steel Bonds
By implementing high-performance stud welding, you have successfully solved the major challenges of slow construction timelines and inconsistent structural integrity. This professional guide has detailed how stud welding for steel structures provides the rapid fusion, labor reduction, and code-compliant safety necessary for modern high-rise and infrastructure projects. We have covered the critical “Drawn Arc” process, the importance of high-quality studs with aluminum flux, and the mandatory testing procedures to guarantee site success.
