The industrial stud welding machine price typically ranges from $1,500 for entry-level units to over $18,000 for high-capacity automated systems. Industrial buyers often face the frustration of inflated distributor markups and hidden shipping fees that can severely compromise project budgets. Furthermore, without a clear understanding of core technology differences, procurement managers risk overpaying for unnecessary features or buying underpowered gear that causes costly job-site downtime. ZOC Machinery provides expert guidance on finding the right equipment valuation for your specific fabrication needs, ensuring you secure factory-direct value alongside high-precision performance.
What factors define the total stud welding machine price?
The total investment required for an industrial stud welder is primarily determined by transformer quality, peak amperage range, and the grade of internal electronic components. Heavy-duty units engineered for 25mm heavy structural shear connectors require significantly more robust hardware than small, portable short-cycle welders.
Understanding power and amperage
- Current Output: Machines ranging from 1600A to 3150A command higher manufacturing costs due to the necessity of heavy-duty cooling systems and high-capacity internal wiring.
- Transformer Material: High-grade pure copper windings increase the initial equipment cost but offer superior long-term thermal stability compared to cheaper copper-clad aluminum alternatives.
Component quality and durability
- Industrial-Grade Components: Heavy-duty capacitors and premium IGBT modules ensure a stable pilot arc and main welding current across hundreds of thousands of cycles.
- Ruggedized Enclosures: IP-rated outer casings protect internal circuitry from harsh, dusty construction site environments and heavy impact.
Engineering Note: Prioritizing copper-wound transformers is essential to ensure your welding power source survives years of high-output heavy industrial fabrication.
| Price Factor | Impact Level | Primary Benefit |
| Transformer Material | High | Long-term Durability |
| Amperage Range | High | Weld Diameter Capacity |
| Component Grade | Medium | Arc Stability |
How does technology impact the stud welding machine price?
Specific engineering choices, such as IGBT inverter modules versus traditional thyristor-based power sources, directly impact the initial capital expenditure. Modern inverter systems offer high-frequency switching and digital precision, but they come at a premium compared to older, time-tested heavy transformer models.
Inverter vs Thyristor technology
- Inverter (IGBT) Systems: These units are lightweight, highly portable, and energy-efficient, often saving fabrication shops 30% to 40% on monthly power bills.
- Thyristor Units: These traditional industrial workhorses are significantly heavier and consume more baseline power, but they feature a lower entry price and unmatched structural ruggedness.
Long-term energy efficiency
- Thermal Management: Higher electrical efficiency results in less internal heat generation, allowing longer continuous duty cycles for your operators.
- Mobility Savings: Lightweight inverter designs reduce onsite transportation overhead and labor fatigue during complex structural setups.
Procurement Tip: Evaluate your monthly electricity costs and site mobility requirements to calculate how quickly the efficiency premium of an inverter unit pays for itself.
| Technology Type | Unit Weight | Energy Savings |
| Inverter (IGBT) | Approx. 90kg | 30% – 40% |
| Thyristor Arc | Approx. 320kg | 0% (Standard) |
| Capacitor Discharge | Approx. 25kg | High (Low Output) |

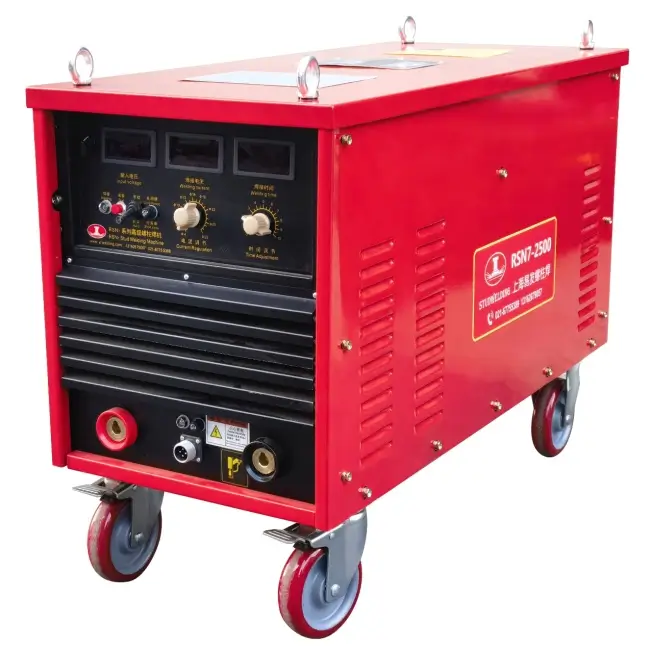

Is a higher inverter stud welding machine price worth it?
Investing in high-frequency inverter technology provides long-term energy savings and digital control capabilities that often far exceed the upfront capital cost. Advanced inverter stud welders are essential for structural steel projects and heavy infrastructure that demand strict compliance with international weld consistency standards (such as AWS D1.1 or ISO 14555).
Precision arc and digital controls
- Weld Consistency: Microprocessor-controlled interfaces allow for micro-second adjustments to both current output and plunge time, minimizing human error.
- Material Versatility: High-end inverter units can manage Φ3mm thin pins up to Φ32mm heavy studs with equal precision across varied base metals.
Operational throughput gains
- Rapid Arc Recovery: Faster cycle times mean more studs welded per hour, significantly boosting shop production speeds.
- Minimal Clean-up: Reduced weld spatter and clean, consistent fillets minimize the need for secondary grinding or finishing processes.
Engineering Note: Choose advanced inverter technology if your contracts demand high-speed multi-shift production and strict quality assurance documentation.
| Inverter Feature | Production Impact | Cost Justification |
| Digital Control | Zero-Defect Rate | Lower Rework Costs |
| High Frequency | 30% Faster Cycle | Labor Hour Savings |
| Fan-on-Demand | Extended Component Life | Lower Maintenance |

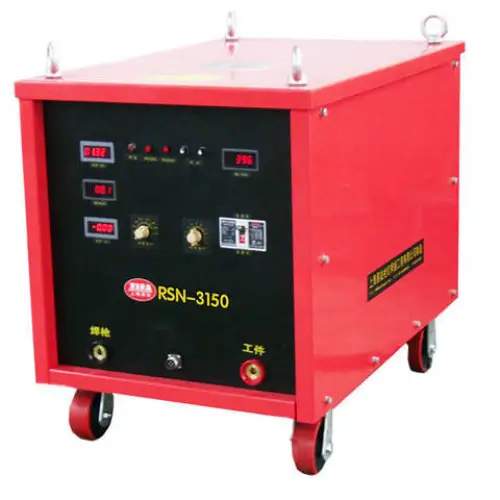

Why is the thyristor stud welding machine price competitive?
A competitive thyristor-based price point offers rugged reliability and raw, uninterrupted power for heavy-duty construction sites. Heavy-duty thyristor stud welders—such as the industry-standard ZOC RSN Heavy Series—remain the go-to choice for bridge building, high-rise steel frame decking, and shipbuilding where environmental conditions are extreme.
Ruggedness for outdoor projects
- Voltage Fluctuations: Large, traditional main transformers easily handle the voltage fluctuations common when operating on remote generator power networks.
- Field Repairability: Simple, modular analog circuit designs allow for faster onsite maintenance without requiring specialized digital diagnostic tools.
High-amperage structural capacity
- Heavy Shear Connectors: Massive continuous current output is ideal for driving Φ22mm to Φ25mm heavy shear connectors into thick structural beams.
- Durable Chassis: The heavy steel chassis provides an incredibly stable, vibration-resistant base in muddy or uneven job site environments.
Procurement Tip: Opt for high-capacity thyristor models when operating on remote infrastructure sites with unstable primary power and extreme temperature variations.
| Workhorse Specs | Standard Range | Typical Application |
| Current Output | 2500A – 3150A | Bridge Decking |
| Stud Diameter | Φ4mm – Φ30mm | Shear Connectors |
| Duty Cycle | Continuous | Heavy Fabrication |
Does a dual-gun feature affect stud welding machine price?
A dual-gun system configuration reflects a higher hardware capacity designed to maximize output for high-volume industrial production lines. Investing in a double-gun setup allows two independent operators to work simultaneously off a single power source, or one operator to toggle between different chuck sizes without changing tools.
Maximizing production efficiency
- Simultaneous Operation: High-capacity units (e.g., 5000A systems) support two welding guns firing independently with zero power drops.
- Zero Setup Downtime: Operators can keep two different chuck sizes or plunge settings pre-loaded, eliminating tool-change delays between different components.
Labor efficiency and throughput
- Footprint Reduction: A single dual-gun unit occupies significantly less valuable shop floor space than maintaining two separate standalone machines.
- Throughput Optimization: Heavy fabrication facilities can increase their hourly output by up to 50% without expanding their equipment footprint.
Procurement Tip: Double-gun configurations represent the most cost-effective solution for structural fabrication facilities running multiple shifts on repetitive assembly tasks.
| System Setup | Output Increase | Best Use Case |
| Single Gun | Baseline | General Construction |
| Double Gun | 30% – 50% | Industrial Steel Fab |
| Automated Gun | 100%+ | OEM Manufacturing |
What influences the automatic stud welding machine price?
Automated equipment costs are primarily driven by specialized multi-axis CNC control systems, automated feeding mechanisms, and integrated engineering features. These advanced systems are engineered for 24/7 high-speed industrial production lines where cycle time and zero-error rates are the primary ROI drivers.
Automation and CNC integration
- High-Speed Cycling: Automated welding heads can process thousands of studs per hour with absolute spatial accuracy and zero human fatigue.
- Vibratory Bowl Feeders: Continuous automated feeding systems eliminate manual stud placement, keeping the gun continuously supplied.
Specialized fixing capabilities
- Process Standardization: Automatic systems ensure identical plunge depth, lift height, and contact pressure for every single cycle.
- Smart Sensors: Integrated diagnostic sensors detect base metal misalignments or feed errors before the arc fires, preventing material waste.
Engineering Note: High-volume automotive or enclosure manufacturers should target fully integrated CNC automated systems to minimize long-term unit labor costs.
| Automation Level | Capacity (Pcs/Hr) | Price Tier |
| Manual Feed | 100 – 300 | Budget |
| Semi-Auto | 500 – 1000 | Mid-Range |
| Fully Auto CNC | 4000+ | Premium |
How does stud diameter change the stud welding machine price?
Your maximum stud diameter requirement is the single biggest variable dictating the size and price of the power source you need. Small, lightweight portable stud welders designed for thin-gauge sheet work are highly economical, whereas heavy structural systems require substantial raw power transformation.
Amperage demand for large studs
- Arc Penetration: Larger diameter studs require significantly longer arc times and higher peak currents to create a proper molten pool on thick base plates.
- Heavy-Duty Cables: Heavy structural drawn arc welding demands thick, high-purity copper ground and gun cables to prevent severe energy drop-offs.
Scaling equipment to the task
- Thin Fasteners: Small Φ3-12mm studs typically utilize lightweight, affordable Capacitor Discharge (CD) or short-cycle technologies.
- Heavy Shear Studs: Large Φ22-32mm structural shear connectors require massive 3-phase drawn arc power sources to ensure full penetration welds.
Procurement Tip: Never purchase an industrial welder that will run at 100% of its maximum capacity constantly; always leave a 20% performance headroom to extend equipment longevity.
| Stud Diameter | Required Tech | Price Impact |
| Φ3 – Φ12mm | CD / Short Cycle | Lower Cost |
| Φ13 – Φ25mm | Drawn Arc | Standard Price |
| Φ25 – Φ32mm+ | Heavy Inverter | Higher Cost |
Can maintenance reduce your stud welding machine price?
Implementing a strict preventive maintenance routine directly reduces the Total Cost of Ownership (TCO) over the equipment’s lifespan by preventing catastrophic hardware failures. Keeping cooling paths clear and electrical connections secure ensures your heavy industrial power source operates at peak efficiency for decades.
Protecting internal electronics
- Debris Management: Metallic dust accumulation inside an inverter cabinet can lead to high-voltage short circuits and catastrophic main PCB failure.
- Thermal Protection: Keeping internal cooling fans and heat sinks clean prevents heat-related component degradation and sudden thermal shutdowns.

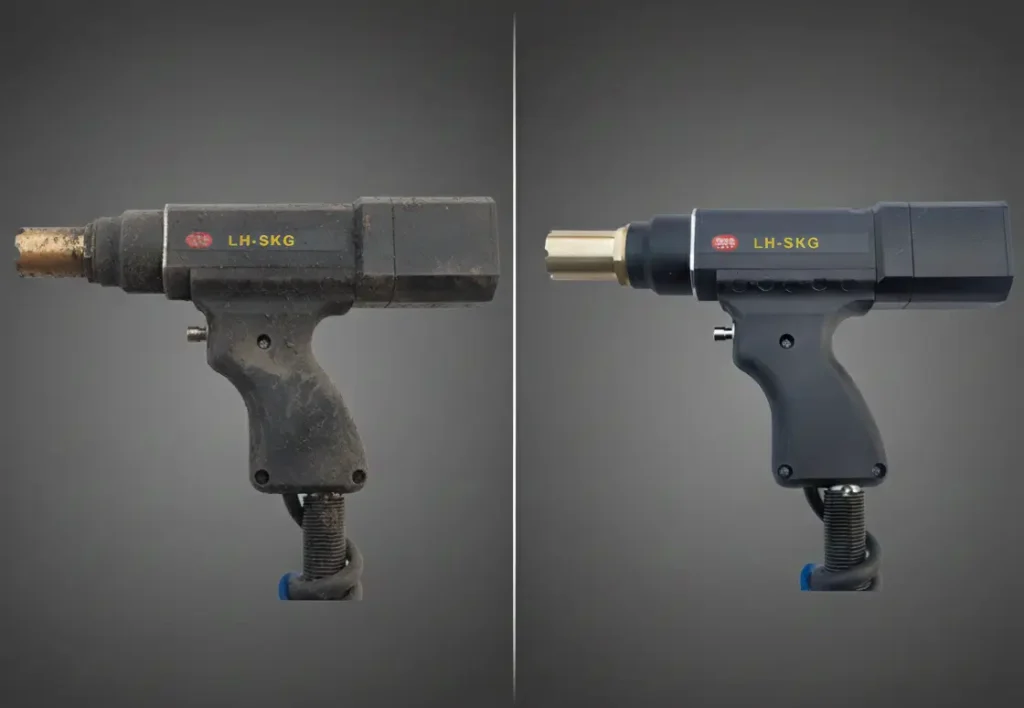

Cable and welding gun care
- Resistance Reduction: Loose cable connections increase electrical resistance, causing extreme heat buildup and burning out expensive terminal lugs.
- Chuck Maintenance: Worn or pitted chucks cause poor electrical contact with the stud, leading to severe arc blow, inconsistent welds, and wasted material.
For a step-by-step breakdown of managing onsite hardware wear, you can read our comprehensive daily maintenance guide for stud welding machines.
Engineering Note: Establishing a brief, 10-minute weekly blowout and inspection routine can easily double the service life of your machine’s primary internal circuitry.
| Action Item | Frequency | Cost Saved |
| Blow Out Dust | Weekly | Main PCB Replacement |
| Tighten Cables | Daily | Connector & Lead Costs |
| Clean Chucks | Bi-Weekly | Material & Rework Cost |
Does factory-direct buying lower stud welding machine price?
Securing a factory-direct purchase structure completely removes multi-tier distributor markups and allows for specialized hardware customization that local trading companies simply cannot offer. Procuring your industrial heavy-duty drawn arc systems straight from the source ensures valid OEM warranties and direct access to heavy engineering expertise.
Bypassing middleman markups
- Direct Cost Reductions: Save up to 30% on initial equipment procurement by bypassing third-party wholesalers and regional retail markups.
- Unfiltered Technical Support: Deal directly with the electrical and mechanical engineers who designed the system for rapid technical troubleshooting.
Customization for specific industrial environments
- Tailored Configurations: Ordering factory-direct allows you to request specialized extended cable lengths, specific input voltages (e.g., 220V/380V/440V), or enhanced cooling modules for high-humidity steel mills.
- Transparency: Reputable direct manufacturers offer transparent factory video audits and live workshop inspection feeds to verify your equipment’s build quality before shipment.
Procurement Tip: Factory-direct procurement offers the ideal balance of lower capital cost and highly specialized technical support for small-to-medium fabrication enterprises.
| Source Type | Markup % | Technical Knowledge |
| Local Dealer | 25% – 40% | General Knowledge |
| Direct Factory | 0% | Expert Engineering |
| Used Market | Variable | No Support |
How to analyze ROI for the stud welding machine price?
Calculating a precise Return on Investment (ROI) helps justify capital expenditure to project management by demonstrating concrete labor savings and material waste reductions. High-quality industrial welding systems typically recoup their initial cost within 12 months via vastly increased throughput.
Measuring labor hour savings
- Velocity Comparison: Drawn arc stud welding is up to 50 times faster than traditional drill-and-tap methods or manual stick welding for shear connectors.
- Quality Rate Consistency: Eliminating human error translates directly to fewer rejected welds, meaning zero structural material waste.
Total cost of ownership metrics
- Utility Overhead: Factor in the long-term reduction in electrical consumption when opting for high-efficiency inverter models.
- Avoided Risk Costs: Factor in the heavy penalty costs of structural project delays that are successfully avoided by using a reliable, heavy-duty industrial unit.
Procurement Tip: A higher initial investment for an industrial-grade, reliable welding machine is always more economical than a budget unit that triggers a week of site-wide project downtime.
| ROI Metric | Improvement % | Financial Impact |
| Labor Hours | 70% Reduction | High Savings |
| Material Waste | 95% Reduction | Medium Savings |
| Energy Usage | 30% Reduction | Annual Cost Savings |
Frequently Asked Questions
Can I use one machine for different stud sizes?
Yes. Most industrial heavy-duty units accommodate a broad diameter range (e.g., Φ3mm to Φ25mm), provided you swap out the copper gun chuck and adjust the current and time parameters via the control interface.
What’s the best technology for site construction?
While traditional thyristor-based welders are widely known for their indestructible nature on outdoor jobsites, ZOC’s specialized Inverter (IGBT) Series has become our flagship recommendation for modern steel construction. It delivers identical industrial-grade arc stability but within a vastly lighter, highly portable chassis that drastically improves onsite mobility and power efficiency.
Can I get spare parts after the purchase?
Established factory-direct manufacturers maintain global express shipping networks for vital consumables and spare parts (such as main control boards, thyristor modules, chucks, and weld guns) to ensure your assembly line experiences minimal operational interruption.
How do I know if I need a double-gun system?
If your daily production volume exceeds 500 structural studs per shift, or if your blueprints require operators to frequently switch between two completely different stud diameters, a dual-gun power source is highly recommended to maximize productivity.
Can I customize the machine for high-heat areas?
Yes. Direct manufacturers can modify internal forced-air cooling paths, upgrade fan specifications, and install higher thermal-rated electronic components to ensure continuous duty cycle operation in tropical or desert environments exceeding 45°C.
Conclusion
Navigating the diverse variables of industrial equipment procurement—from inverter efficiency and amperage limits to the distinct financial advantages of factory-direct sourcing—is crucial for maximizing your manufacturing ROI. By focusing on the true Total Cost of Ownership (TCO) and daily production throughput gains, you guarantee that your structural fabrication facility remains highly competitive. To find the optimal balance of rugged performance and direct manufacturer pricing for your next project, contact ZOC Machinery today for a detailed technical configuration and factory-direct quote.
