Bad CD Welds are often easy to spot: a stud snaps off during a check, the flash is heavy on one side, or the back of a thin panel shows a mark. The visible symptom is a starting point, not a diagnosis. In capacitor discharge (CD) stud welding, the ignition tip, stored energy, gun movement, contact surfaces and work return all have to work together.
This guide walks through the common CD stud welding defects and the checks that help separate them. If the fault appears across several processes, use our general stud welding troubleshooting guide alongside the equipment manual.
Why does CD weld quality matter?
Capacitor Discharge (CD) welding joins a stud to the base metal in a very short discharge. The timing tip starts the arc; the gun then drives the stud into the molten surfaces. A stud that appears attached may still fail the bend, torque or pull test specified for the job.
For thin sheet, the goal is a reliable joint without unacceptable distortion or a visible backside mark. Neither a small heat-affected zone nor a neat-looking stud guarantees those results. Set acceptance criteria before production and test the same stud and sheet combination that the line will use.
| Check | Why it matters |
|---|---|
| Joint strength | Verify by the test required for the application |
| Backside appearance | Inspect the actual sheet thickness and finish |
| Repeatability | Compare trial welds with production welds |

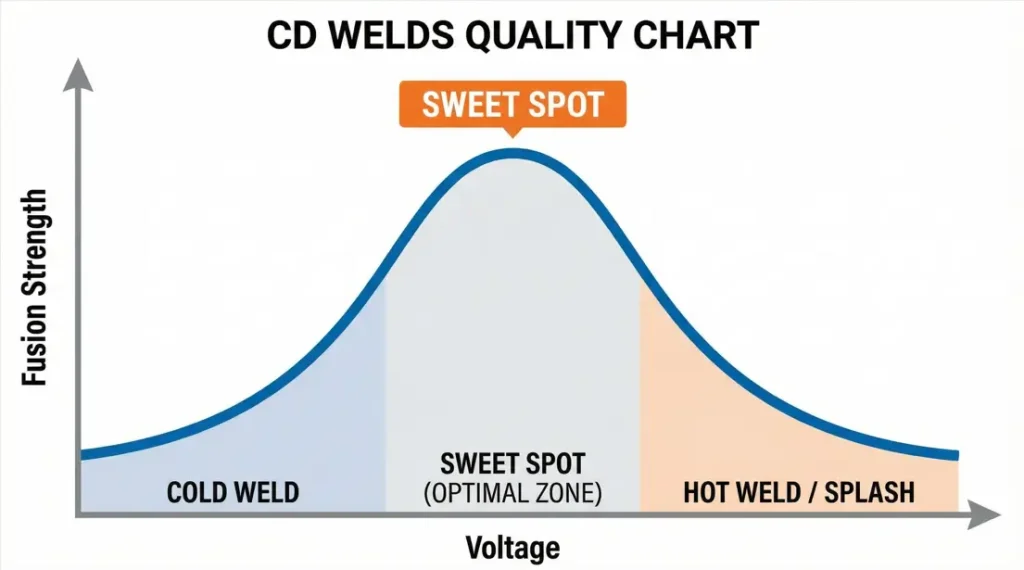

How does stored energy affect a CD weld?
The capacitor bank in a stud welding machine stores the energy released at the stud tip. Charge voltage is one setting that changes the energy available for a weld. Start with the machine maker’s setting range for the stud diameter, material and sheet thickness, then make test welds. A bigger number on the display is not automatically a stronger joint.
Too little energy can leave a weak, poorly fused connection. Excessive energy can produce a wide flash and spatter. If the weld changes suddenly while the displayed setting stays constant, check the circuit, gun and material before moving the voltage.
| Observation | First response |
|---|---|
| Little or no flash; weak test result | Check contact and settings; trial a higher approved energy setting |
| Heavy flash and spatter | Check setup; trial a lower approved energy setting |
| Results vary at one setting | Inspect return path, collet, tip and surface condition |
What role does the gun spring play?
The spring in the welding gun moves the stud into the molten area after ignition. On equipment that permits spring or plunge adjustment, too much or too little force can change when the arc is extinguished and how the stud seats. Other CD guns have a fixed spring, so there may be no pressure setting to turn.
Check that the gun moves freely, the support feet sit flat and the stud tip has not been crushed before the trigger is pulled. Use the gun manual for the adjustment sequence; change one setting at a time and compare test welds. The correct pressure cannot be inferred from stud diameter alone.
| Gun condition | Check |
|---|---|
| Stud fails to seat consistently | Piston travel, support feet and approved spring setting |
| Ignition tip deformed before firing | Contact force and gun setup |
| One-sided flash | Gun angle, support contact and return-lead layout |
How do you recognize an under-energized weld?
A weak CD weld may show little flash, but that appearance is not enough to call it a cold weld. Test a sample under the approved procedure, inspect the fracture surface and compare the machine settings with a known-good setup. A clean separation at the interface points toward inadequate bonding; investigate energy, electrical contact, the ignition tip and surface preparation together.
A flux-ball fixing machine is used for a different shear-stud preparation step. It does not set CD welding energy or correct a weak CD joint. For CD work, use a fresh, process-compatible stud with an intact ignition tip when repeating a test.
| Possible cause | Practical check |
|---|---|
| Insufficient energy | Compare voltage and capacitance with the approved setup |
| Poor work return | Clean and tighten return connections |
| Damaged or wrong stud tip | Check stud specification and use a fresh stud |
| Contaminated base metal | Prepare a clean, weldable contact area |

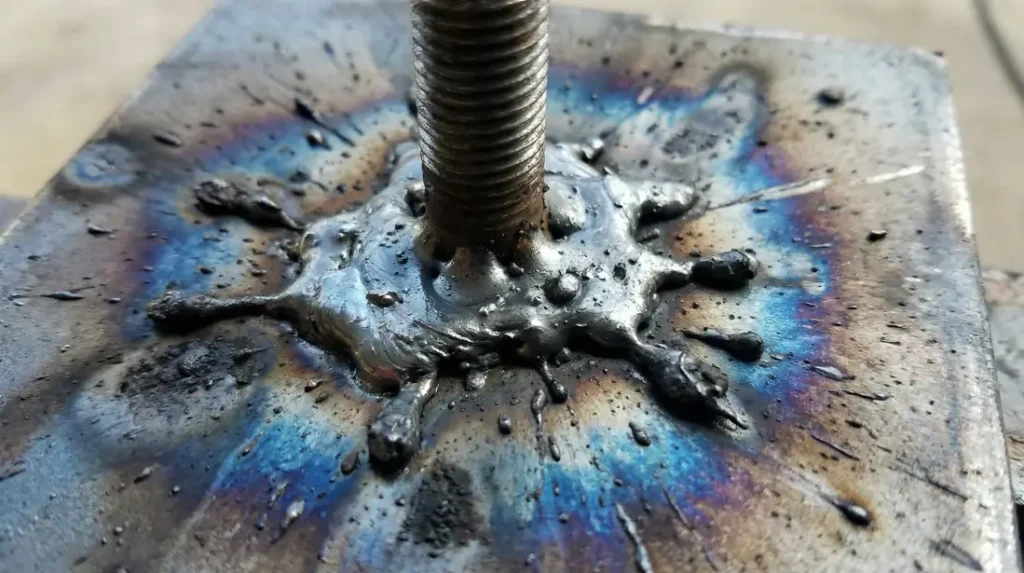

What causes excessive spatter?
A broad flash or scattered droplets can indicate excessive energy, but do not change voltage until the stud size, base material and gun setup are confirmed. A tilted gun, unsuitable ignition tip or poor return path may also make the weld look uneven.
Record the setting and make a small set of trial welds on the production material. If the flash remains excessive, adjust within the equipment maker’s range and retest. On finished panels, also inspect the reverse side; a short CD cycle does not guarantee a mark-free surface.
| Symptom | What to inspect |
|---|---|
| Broad, even flash | Energy setting and stud size |
| Flash mostly on one side | Gun position and return-lead arrangement |
| Backside mark or indentation | Sheet thickness, finish and heat input |
How does surface preparation affect CD welds?

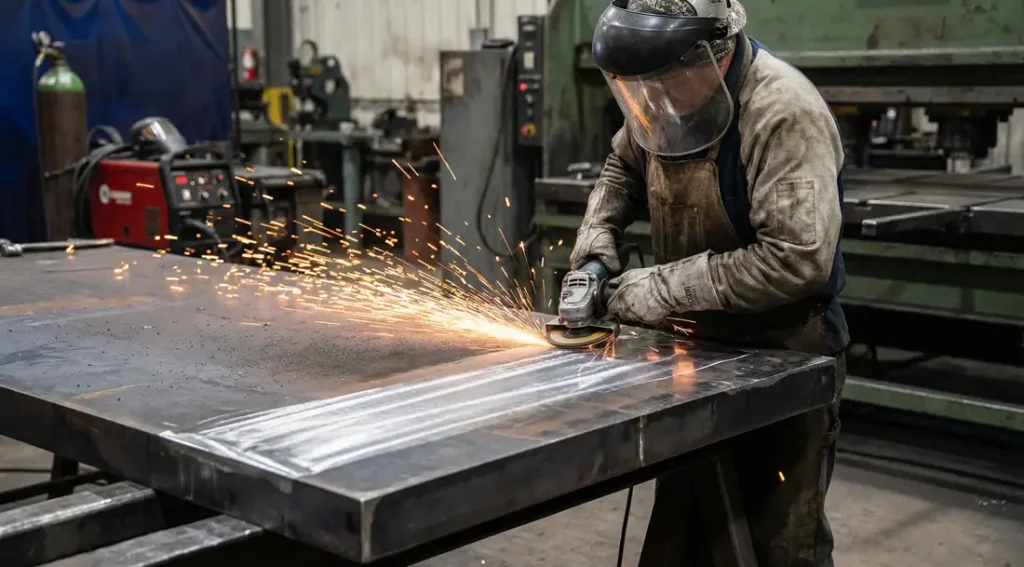

CD welding depends on clean metal-to-metal contact at both the stud and work return. Paint, rust, scale, grease and unsuitable coatings can interrupt that contact. Remove them at the weld location using a preparation method approved for the material and finish. Aluminum oxide also needs attention before welding aluminum studs.
Use the same preparation on trial pieces and production parts. If you are checking supplier background as well as process advice, our about us page describes ZOC Machinery; the acceptance of a weld still rests on the job’s tests and procedure.
| Surface condition | Action before welding |
|---|---|
| Paint, oil or grease | Clean the weld and return-contact areas |
| Rust or heavy scale | Expose sound, metallically bright material |
| Plating or coating | Confirm weldability and approved preparation |
| Aluminum oxide | Prepare the surface per the qualified process |
What can a visual check tell you?
Look for a reasonably even flash, sound stud seating, obvious cracks, missing metal and damage to the reverse side. A one-sided flash can result from gun tilt or an unbalanced current path. The operator should hold the stud welding gun square to the surface, but should not assume angle is the only possible cause.
Visual inspection screens for problems; it does not prove joint strength. Use the bend, torque or pull method specified for the application. Our stud welding quality guide explains how appearance and testing fit together.
| Visual cue | Next step |
|---|---|
| Even, modest flash | Still verify against the approved acceptance test |
| Little or no flash | Check bonding, energy and electrical contact |
| One-sided flash | Check alignment and current return |
| Backside damage | Review sheet, stud and energy combination |
Why does the work return affect consistency?

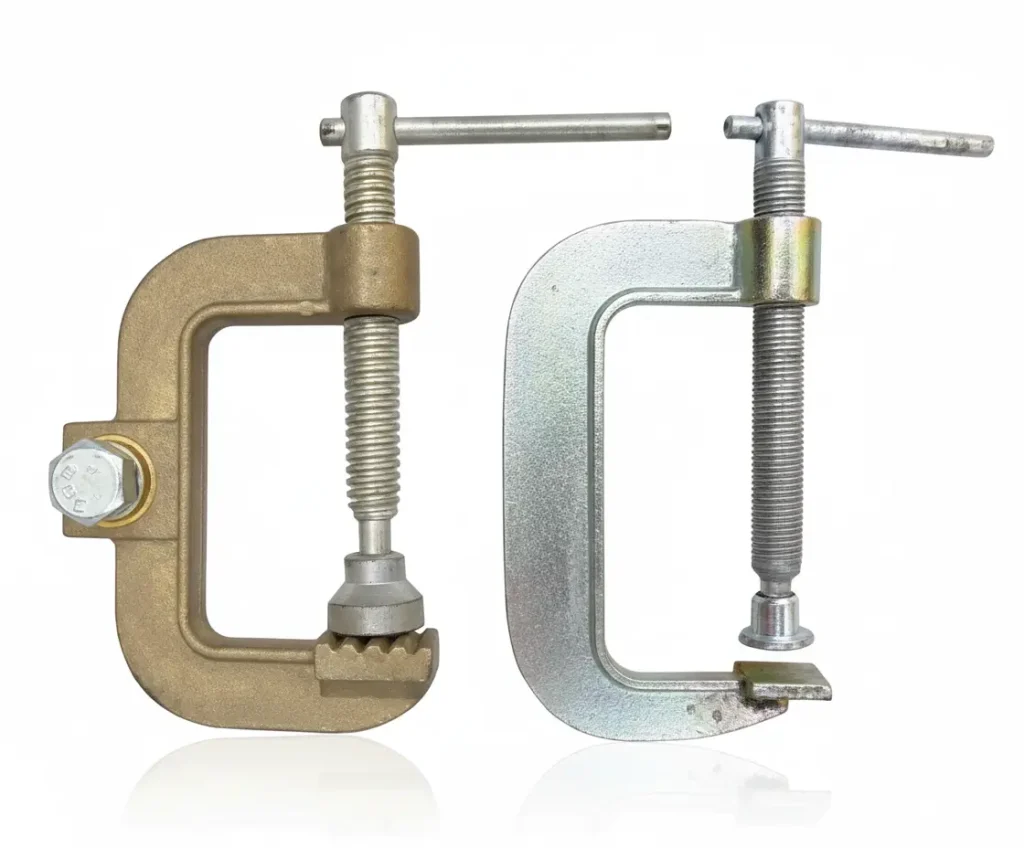

The work return completes the welding circuit. Dirty clamp teeth, loose lugs, damaged cables or poor contact can reduce the energy reaching the stud. A clean stud welding gun will not compensate for a poor return connection. Place and connect the leads as the equipment manual specifies, then check the circuit before changing weld settings.
An uneven return path can also contribute to arc deflection. Some equipment uses two return leads; their position should follow the manufacturer’s guidance, not an assumed universal distance from the weld. Inspect the chuck or collet as well, because a loose stud can arc at the gun instead of delivering a consistent weld.
| Connection | Routine check |
|---|---|
| Return clamp | Clean, firm contact with bare metal |
| Cable and lugs | No loose, damaged or overheated connections |
| Chuck or collet | Correct grip and clean current path |

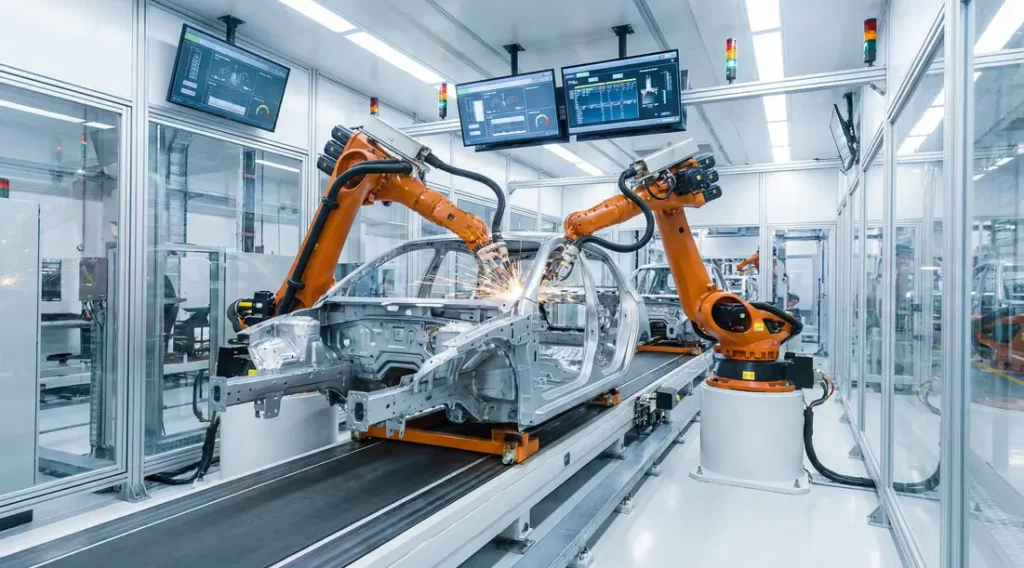

Can automation prevent bad CD welds?
Automation can repeat a programmed gun position and cycle more consistently than a rushed manual sequence. It cannot make a dirty sheet clean or turn the wrong stud into the right one. Feed orientation, part location, return contact and the accepted parameter window still need control.
If the machine records process signals, use alarms to identify parts for inspection. A normal signal is useful evidence, but the quality plan still needs representative weld tests and checks after material or tooling changes.
| Control method | What it can do |
|---|---|
| Fixed tooling | Hold part and gun position more consistently |
| Process monitoring | Flag cycles outside configured limits |
| Sample testing | Verify that the joint meets the job requirement |
Which maintenance checks protect weld quality?
Start with the components that carry current and guide the stud. Check the gun chuck, support feet, piston travel, leads and clamps according to the equipment manual. Replace worn parts when inspection or a failed test calls for it; a fixed “every 5,000 welds” interval is not a substitute for the maker’s maintenance schedule.
Clean and service the gun as its manufacturer specifies, rather than blowing conductive dust into the housing or adding lubricant where it does not belong. See our stud gun maintenance guide for the main wear points, and our machine maintenance guide for power-unit checks. Internal capacitor testing belongs to qualified service personnel.
| Item | Watch for |
|---|---|
| Gun movement | Binding or inconsistent travel |
| Chuck and leads | Poor grip, heat damage or loose joints |
| Return clamps | Contamination, weak grip or overheating |
| Power unit | Fault codes or output that differs from verified settings |
A practical check before production
Use the intended stud and sheet, clean both electrical contact areas, set up the gun, and make trial welds. Record the machine and gun settings. Inspect the flash and reverse side, then carry out the acceptance test required for the job. If the result changes later, compare the new parts, surfaces and connections with that approved setup before adjusting the voltage.
At ZOC Machinery, we can help match equipment and consumables to the application. If you need to review a recurring fault, contact us with the stud specification, base material, thickness, machine model, settings and photos of both sides of the test piece.
FAQ
Can CD welding join aluminum studs to steel?
Do not assume that it can. Dissimilar material combinations require a process and joint design qualified for the application. A CD setup that works for aluminum-to-aluminum or steel-to-steel is not proof that aluminum-to-steel will pass.
Why is the flash heavier on one side?
Check gun alignment and support contact first, then the return-lead arrangement and the condition of the base metal. The flash pattern alone cannot identify which one caused the fault.
Can a failed stud be welded again?
Use a fresh stud with an intact ignition tip and prepare the damaged spot as the approved repair procedure requires. Do not fire the same used tip again and treat the result as equivalent to a new weld.
How can I avoid marking the back of thin sheet?
Trial the actual sheet thickness and finish with a suitable stud and approved energy range. Inspect the reverse side after welding. CD welding limits heat input, but marking or indentation can still occur.
What should I check first when quality drops suddenly?
Compare a failed weld with the last accepted setup. Check the stud batch and tip, surface condition, gun movement, return connection and machine fault indicators before changing several settings at once.
